Blue Sea Systems Fuse Block Safety Hub 100 – 7725

Description

Blue Sea Systems Fuse Block Safety Hub 100 – 7725

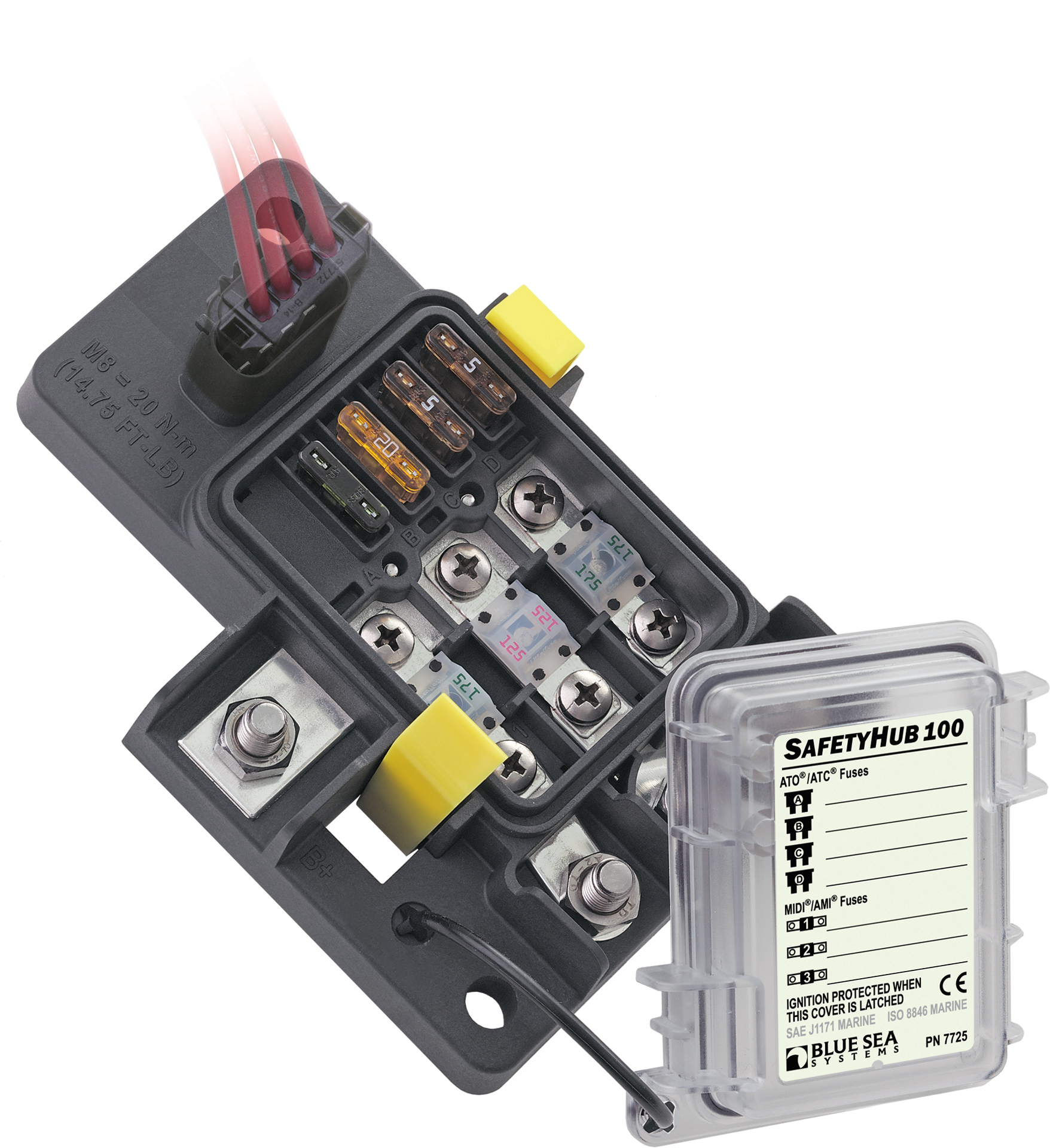

The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.

• Three 30A–200A MIDI®/AMI® fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Four 1A–20A ATO®/ATC® fuses [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory
• Sealed cover protects fuses from the harsh marine environment: IP66 rating — protected against powerful water jets
• Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
• Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Circuits: 7
• Stud Size: M8 × 1.25
• Operating Voltage: 12V 24V 32V
• Amperage Maximum Operating – combined: 280A
• Recommended Ring Terminal: M8 (5/16″)
• Screw Torque, 8-32: 18 in-lb (2.03 N·m)
• Screw Torque, M5: 27 in-lb (3.05 N·m)
• Stud Torque: 180 in-lb (20.34 N·m)
• Weight: 3.20 lb (1.45 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 7725
