Description
BLUE SEA SYSTEMS Mega Fuse Block 100-300A W/Cov – 5001.
- Accepts 5/16″ (M8) ring terminals
- Insulating cover satisfies ABYC/USCG insulation requirements
- Insulating cover breakouts allow wire access in three directions
- Insert molded studs ensure secure fuse mounting
- Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
- UL 94-V0 base resists high heat

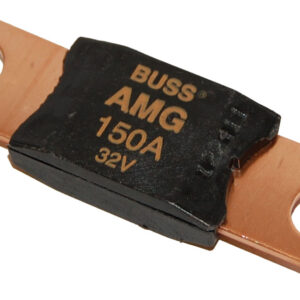

- Fuse sold seperately
Specifications | |
---|---|
Maximum Voltage | 32V DC |
Stud Size | 5/16″ |
Base Material | Reinforced PBT |
Cover Material | Polycarbonate |
Maximum Terminal Torque | 110 in-lb (12.43 Nm) |
Stud Torque | 120 in-lb (13.56 Nm) |
Weight | 0.35lb (0.16 kg) |
Weight | 0.35lb (0.16 kg) |
