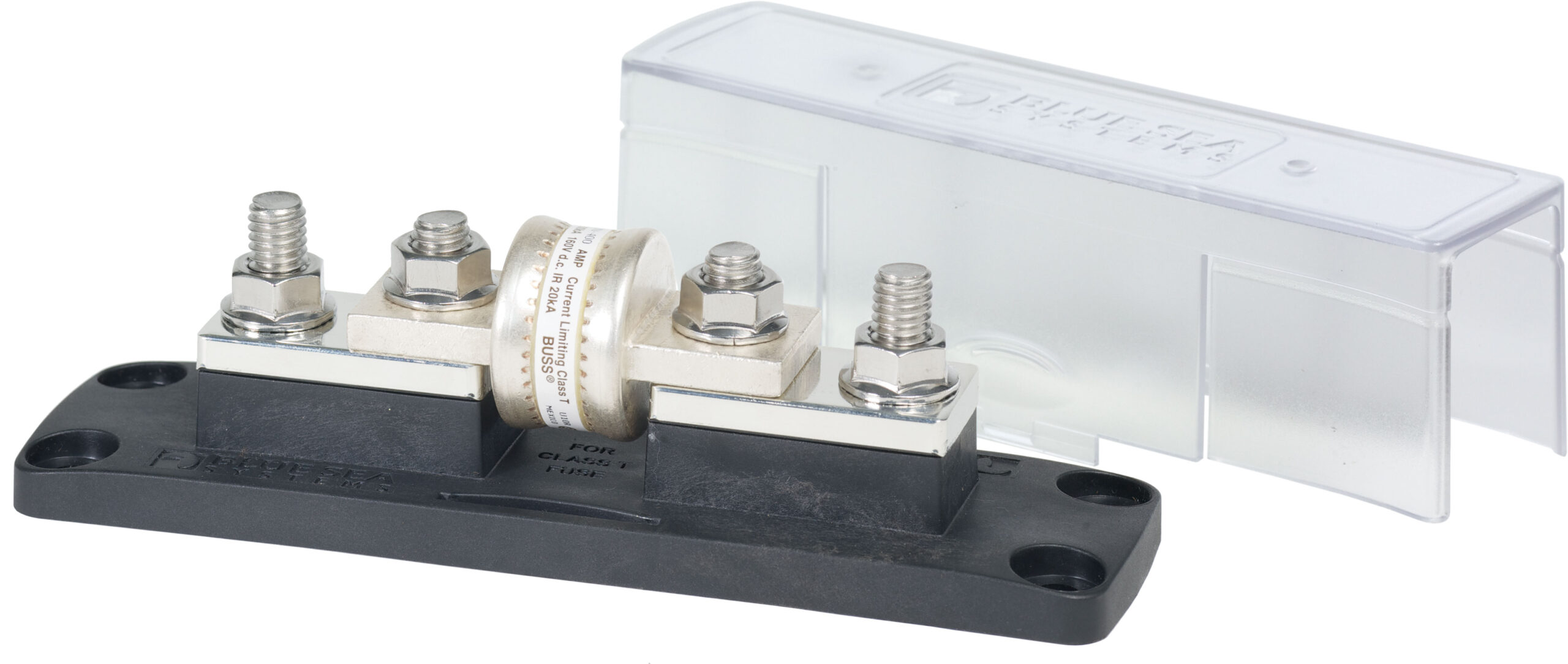

Blue Sea Systems Class T Fuse Block with Insulating Cover – 225 to 400A – 5502

Description

Blue Sea Systems Class T Fuse Block with Insulating Cover – 225 to 400A – 5502

The Blue Sea Systems Class T Fuse Block with Insulating Cover – 225 to 400A is designed for marine and mobile electrical circuit protection.

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits
• Clear insulating cover, satisfies ABYC/USCG requirements
• For use on systems up to 160 Volts DC
• Large 3/8″-16 stud terminals accept ring terminals for wire up to 4/0 AWG
• Large heat dissipating tin-plated copper mounting blocks

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Ignition Protected: No
• Maximum Amperage: 400A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: tin-plated Copper
• Maximum Cable Size: 4/0 AWG
• Maximum Torque: 190 in-lb (21.47 N·m)
• Mounting Holes: Accept 1/4 (M6) Screw
• Terminal Stud Size: 3/8″-16 (M10)
• Weight: 1.10 lb (0.5 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 5502
