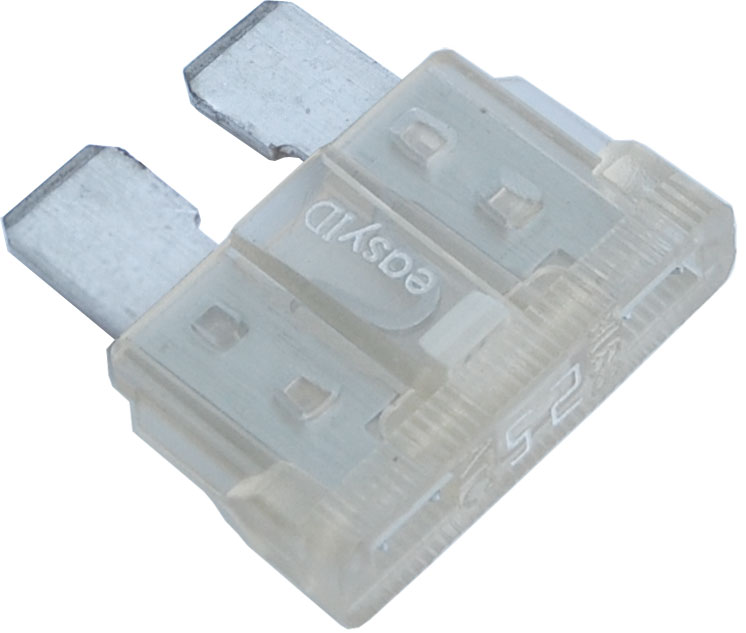

Blue Sea Systems easyID Fuse 25A – 5297

Description

Blue Sea Systems easyID Fuse 25A – 5297

ATC® fuses illuminate when blown easyID™ illuminated ATC® blade fuses use Light Emitting Diode (LED) technology to show that a fuse has blown, making them easy to spot in fuse panels tucked up under dark dashboards.

• Replaces non illuminating ATO® or ATC® fuses
• Fast acting
• Two per retail package
• Interrupt Capacity: 1000A @ 32V DC
• Compatible with ATO/ATC fuse installations when matched to the correct circuit rating

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 25A
• Interrupt Capacity: 1,000A @ 32V DC
• Blade Material: tin-plated
• Weight: 0.03 lb (0.01 kg)
• Fuse Body Size: ATO/ATC blade fuse format; approx. 0.75 in L × 0.75 in H × 0.20 in T (19.1 mm × 19.1 mm × 5.0 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5297
