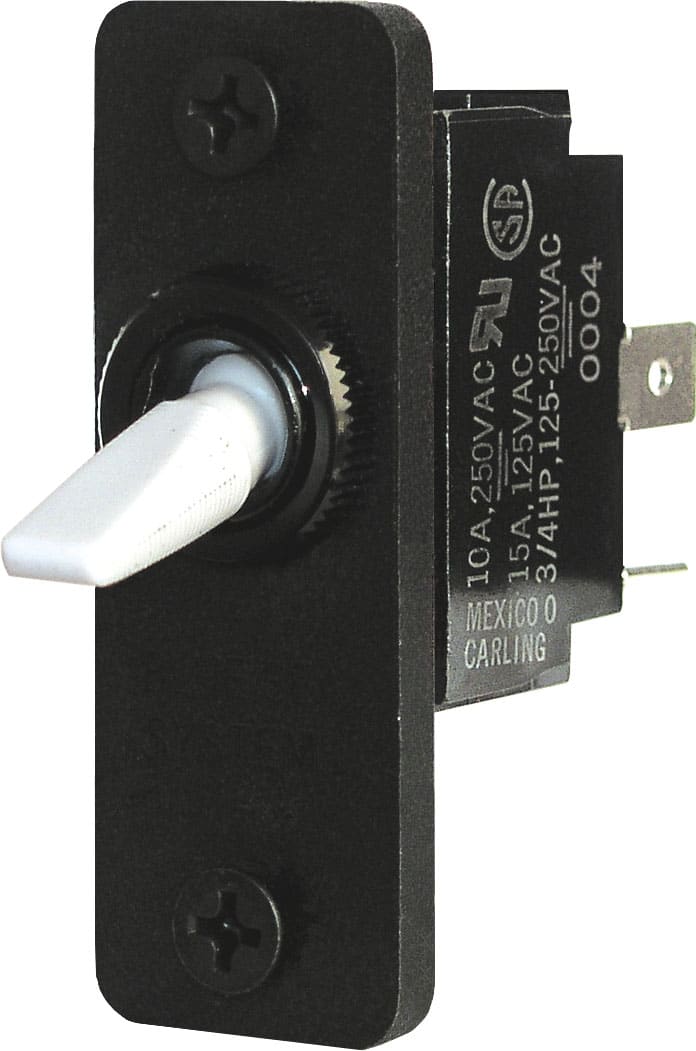

BLUE SEA SYSTEMS Toggle Switch (On)-Off-On Dpdt – 8212

Description

The Blue Sea Systems Model 8212 is a rugged, double-pole double-throw (DPDT) toggle switch designed for versatile electrical control in marine, RV, and industrial applications. This (On)-Off-(On) switch configuration allows you to toggle between two separate circuits or functions with a center off position for safety and convenience.

Built to withstand harsh environments, the switch features a durable, corrosion-resistant construction with a positive click action for reliable operation. Its compact design and standard mounting make it ideal for panel installations where robust, easy-to-use switching is required.

Key Features:

• DPDT (Double-Pole Double-Throw): Controls two separate circuits with three switch positions.

• (On)-Off-(On) Configuration: Center off position allows safe isolation between two active positions.

• Marine-Grade Construction: Corrosion-resistant materials for durability in wet or salty environments.

• Positive Click Action: Provides tactile feedback for confident switching.

• Compact Size: Fits standard toggle switch mounting holes.

• Panel Mount: Easy installation with secure mounting hardware included.

• Solder Lug Terminals: Simple wiring connections for reliable performance.

Specifications:

• Manufacturer: Blue Sea Systems

• Model Number: 8212

• Switch Type: Toggle switch, DPDT (Double-Pole Double-Throw)

• Switch Positions: (On) – Off – (On)

• Electrical Rating: Typically 15A at 12V DC (confirm exact rating for your application)

• Terminals: Solder lug style

• Mounting: Panel mount with standard toggle switch hole (approx. 0.5″ diameter)

• Material: Corrosion-resistant metal and plastic components

• Color: Black toggle handle with chrome or black bezel (varies)

• Dimensions: Approximately 2.5″ length including toggle lever

• Operating Temperature: Suitable for marine and outdoor environments

• Compliance: Meets relevant UL and marine electrical standards

Applications:

• Switching between two electrical loads or sources

• Selecting functions such as bilge pump modes, lighting circuits, or accessory control

• Marine, RV, and industrial electrical panels

• Control panels requiring reliable, clear switching options
