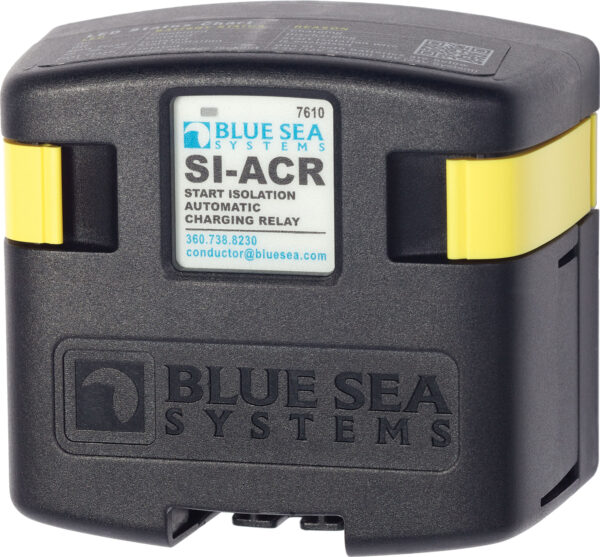

BLUE SEA SYSTEMS SI-ACR Automatic Charging Relay – 12/24V DC 120A – 7610

Description

BLUE SEA SYSTEMS SI-ACR Automatic Charging Relay – 12/24V DC 120A – 7610.Ã’šÃ‚  Automatically combines batteries during charging, isolates batteries when discharging and when starting engines
Features

• Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
• Designed for 12 or 24 volt systems
• 12/24 volt auto ranging voltage input
• Hermetically sealed contacts/vaporproof
• Ignition protectedââ’š¬”safe for installation aboard gasoline powered boats
• Supports high-output alternators up to 120 Amperes
• Dual sensing

Optional Features

• Start IsolationÃ’šÃ‚ allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
• Remote LEDÃ’šÃ‚ remotely indicates ACR states – requires optional LED

Specifications
Nominal Voltage	12V DC 24V DC
Start IsolationÃ’šÃ‚	Yes
Amperage Operating Current	175mA (combined) 15mA (open)
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous RatingÃ’šÃ‚	120A
Intermittent RatingÃ’šÃ‚	210A (5 min)
Cable Size to Meet Ratings	1/0 AWG
Stud Material	Tinned Copper
Terminal Ring Diameter Clearance	1.12in (28.45 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8″ – 16 (M10)
Relay Contact Position
Combine 30 sec	13.6V @ 12 V 27.2V @ 24 V
Combine 90 sec	13.0V @ 12 V 26.0V @ 24 V
Open 10 sec	12.35V @ 12 V 24.7V @ 24 V
Open 30 sec	12.75V @ 12 V 25.5V @ 24 V
Open High	16.0V @ 12 V 30.0V @ 24 V
Over Voltage Lockout	16.0V @ 12V 32.0V @ 24V
Under Voltage LockoutÃ’šÃ‚	9.5V @ 12 V 19V @ 24 V
Weight	1.25lb (0.57 kg)

SI-ACR automatically combines batteries during charging, isolates batteries when discharging and when starting engines. The Dual Circuit Plus™ Battery Switch simplifies the switching of two batteries to OFF or ON while still providing battery isolation between the engine and auxiliary battery. The Combine function can be used to parallel the batteries in the event of a low engine battery.
