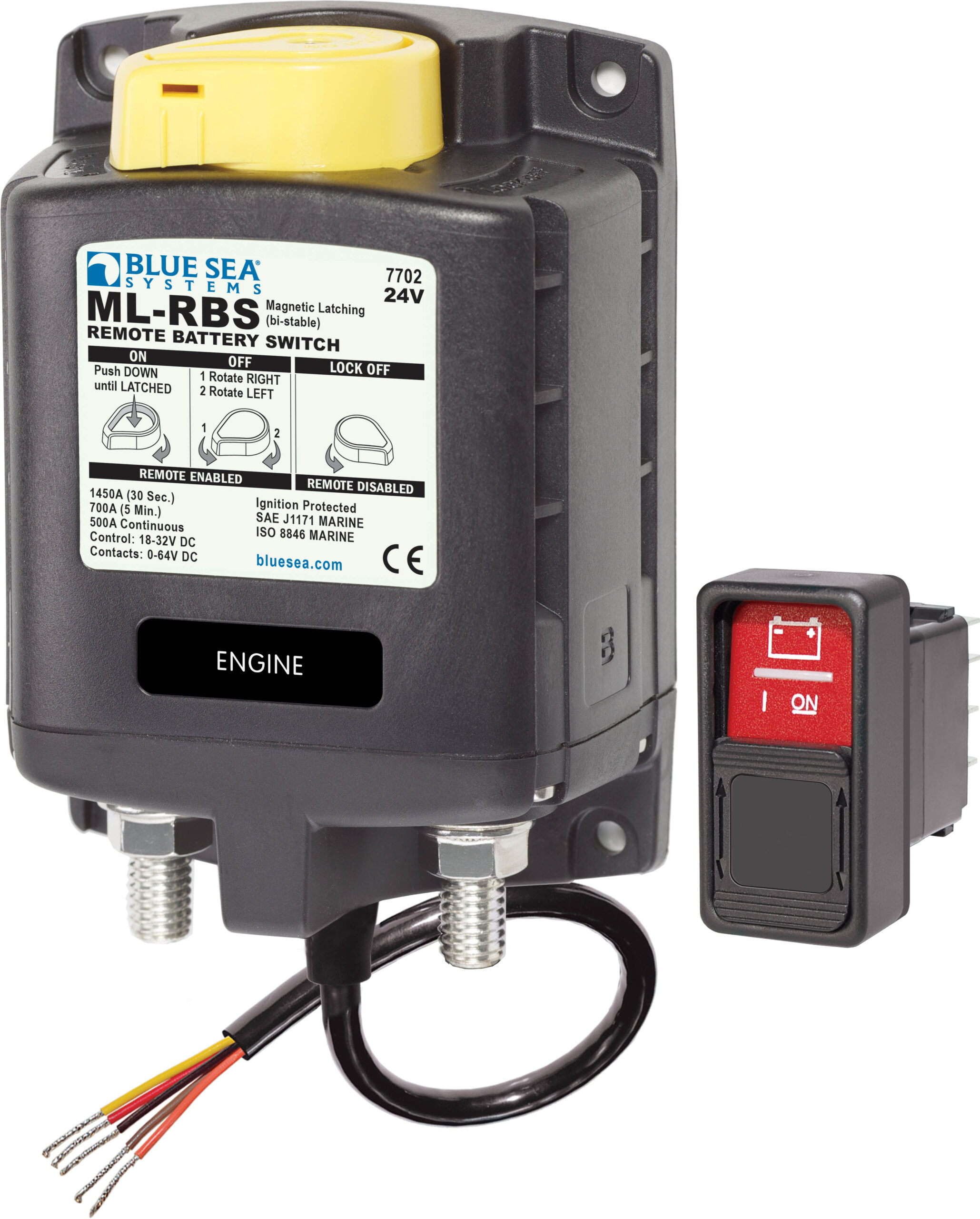

BLUE SEA SYSTEMS ML-RBS Remote Battery Switch with Manual Control – 24V DC 500A – 7702

Description

BLUE SEA SYSTEMS ML-RBS Remote Battery Switch with Manual Control – 24V DC 500A – 7702.Ã’šÃ‚  500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state – requires optional LED
• 3âË’ Ã¢â‚¬¢ 8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7âË’ Ã¢â‚¬¢ 8″ (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications
Control Circuit Voltage	18-32V DC
Control Circuit ConnectionÃ’šÃ‚	Tinned Wire
Nominal Voltage	24V DC
Manual ControlÃ’šÃ‚	Yes
Coil FunctionÃ’šÃ‚	Bi-Stable
Mounting	#10
Amperage Operating Current	0mAÃ’šÃ‚
Amperage Operating Current when changing state	<4A (40 ms)
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous RatingÃ’šÃ‚	500A
Intermittent RatingÃ’šÃ‚	700A (5 min)
Cranking Rating 30 secÃ’šÃ‚	1450A DC
Minimum Operating Temperature	-10Ã’š° C
Maximum Operating Temperature	60Ã’š° C
Cable Size to Meet Ratings	2x (4/0)
Live Current Switching	300A @ 12V DCÃ’šÃ‚
Master Control Switch Capability	No
Mechanical Endurance	100,000 Cycles
Terminal Ring Diameter Clearance	1.18in (29.97 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8″ – 16 (M10)
Weight	2.09lb (0.95 kg)
