Blue Sea Systems ATO/ATC-Style Low Profile Circuit Breaker – 7.5A – 7063

Description

Blue Sea Systems ATO/ATC-Style Low Profile Circuit Breaker – 7.5A – 7063

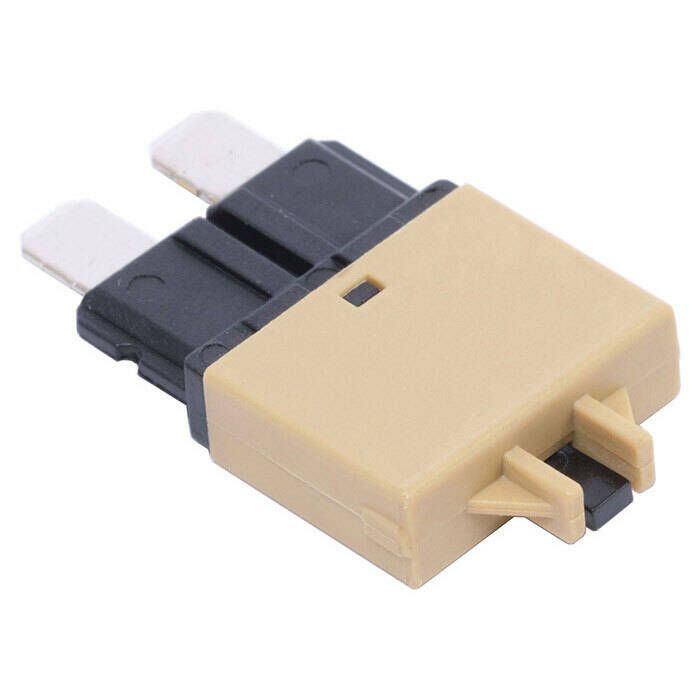

The Blue Sea Systems ATO/ATC-Style Low Profile Circuit Breaker – 7.5A is a manual-reset thermal circuit breaker designed as a drop-in replacement for ATO/ATC blade fuses. It provides reusable branch-circuit protection in compatible Blue Sea Systems ST-Blade fuse blocks.

• Drop-in replacement for ATO/ATC blade fuses
• Manual push-button reset eliminates the need to replace a fuse after an overload
• Compatible with Blue Sea Systems water-resistant ST-Blade fuse blocks
• Compatible with other Blue Sea Systems ST-Blade fuse blocks
• Thermal trip mechanism provides reusable overcurrent protection

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 7.5A
• Color: Brown
• Maximum Voltage: 32V DC
• Trip Type: Thermal
• Reset Type: Manual push-button reset
• Interrupt Capacity: 2,000A @ 28V DC
• Minimum Operating Temperature: -30°C
• Maximum Operating Temperature: 77°C
• Product Envelope: ATO/ATC low-profile blade-breaker format; approx. 20.0 mm L × 19.0 mm W × 6.2 mm H
• Manufacturer: Blue Sea Systems
• Part Number: 7063
