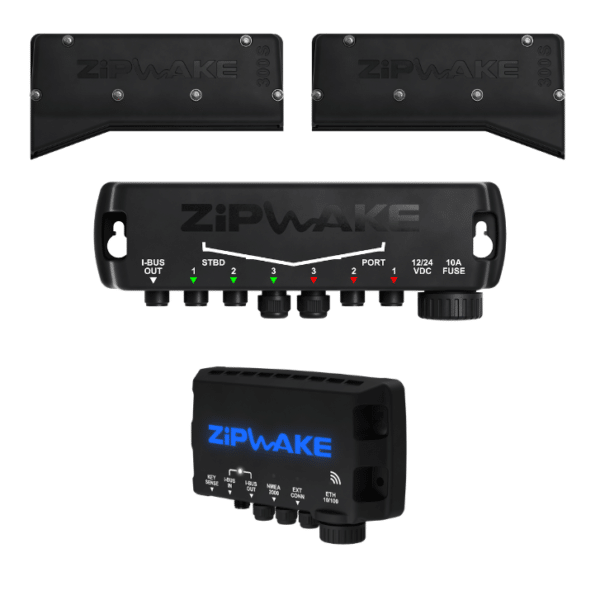

ZIPWAKE KBI300-S Chine Integration Dynamic Trim Control Kit – 2011519 is a complete Series S dynamic trim-control package built around a pair of fast-acting 300 mm chine interceptors and Zipwake’s Integrator Module. Designed for installations where control through a compatible multifunction display (MFD) or smart device is preferred over a dedicated Zipwake control panel, the system provides automatic pitch and roll correction while maintaining a clean, uncluttered helm.
The 300 S Chine interceptors are specifically shaped for installation at the outer chine areas of the transom. This outboard positioning allows them to generate lift where it has maximum leverage for both pitch and roll control. Zipwake notes that a chine interceptor can typically provide a lift effect comparable to a straight interceptor one size larger mounted farther inboard. The result is responsive motion control while making efficient use of available transom space.
Key Features
- Integrated MFD control: The included Integrator Module allows Zipwake operation through compatible multifunction displays via Ethernet and through smartphones or tablets using Zipwake’s wireless interface.
- Automatic pitch and roll control: Built-in motion sensing continuously adjusts interceptor position to improve running attitude, reduce roll and improve onboard comfort.
- 300 mm chine interceptors: Dedicated port and starboard chine units place lift farther outboard for strong roll-control authority and efficient pitch correction.
- Fast interceptor response: Series S interceptors provide a 30 mm blade stroke at approximately 20 mm/sec, completing full blade travel in about 1.5 seconds.
- Expandable system: A Series S installation can support up to six interceptors, allowing additional interceptor pairs to be added when vessel size or hull configuration requires greater lift.
Kit Includes
- 1 × ZIPWAKE Integrator Module – 2012241
- 1 × M12 Standard Cable, 7 m – 2011257
- 1 × Series S Distribution Unit with 4 m power cable – 2011239
- 1 × 300 S Chine Port Interceptor with 3 m cable and cable cover – 2011702
- 1 × 300 S Chine Starboard Interceptor with 3 m cable and cable cover – 2011703
- Installation hardware and mounting screws
- Drill templates and installation documentation
- Operator’s documentation and startup information
System Specifications
- Manufacturer: ZIPWAKE
- Model: KBI300-S CHINE
- Part Number: 2011519
- Series: Series S
- Kit Type: Integration Dynamic Trim Control System
- Interceptor Type: Chine, Port and Starboard
- Nominal Interceptor Size: 300 mm / approximately 12 in
- Blade Stroke: 30 mm / 1.2 in
- Blade Rate: 20 mm/sec / 0.8 in/sec
- Maximum Boat Speed: 60 knots
- Interceptor Cable Length: 3 m / 10 ft each
- Interceptor Connector: M12 5-pin circular
- Interceptor Servo: Calibration-free submersible brushless DC servo
- System Supply: 12-32 V DC
- Integrator Module Sensors: 3D gyro, 3D accelerometer and magnetic compass
- Integrator Interfaces: Ethernet, Wi-Fi/Bluetooth, NMEA 2000, I-BUS/CAN, key sense and external connection interface
- Integrator Waterproof Rating: IP67
- Interceptor Waterproof Construction: Designed for submerged marine installation
- Application: Planing and semi-planing monohull or multihull vessels; Series S is designed for boats approximately 6-15 m / 20-50 ft
MFD Integration
The Integrator Module is intended for vessels where Zipwake control will be incorporated into an existing compatible MFD or smart-device installation. Current supported MFD platforms include selected Garmin OneHelm, Simrad, B&G, Lowrance, Raymarine Axiom and Q Experience displays. MFD compatibility can depend on model and software version, so compatibility should be confirmed before installation.
Important: This integration kit does not include the standard ZIPWAKE Series S control panel. A control panel or Mini Controller can be added separately if dedicated physical controls are desired.
