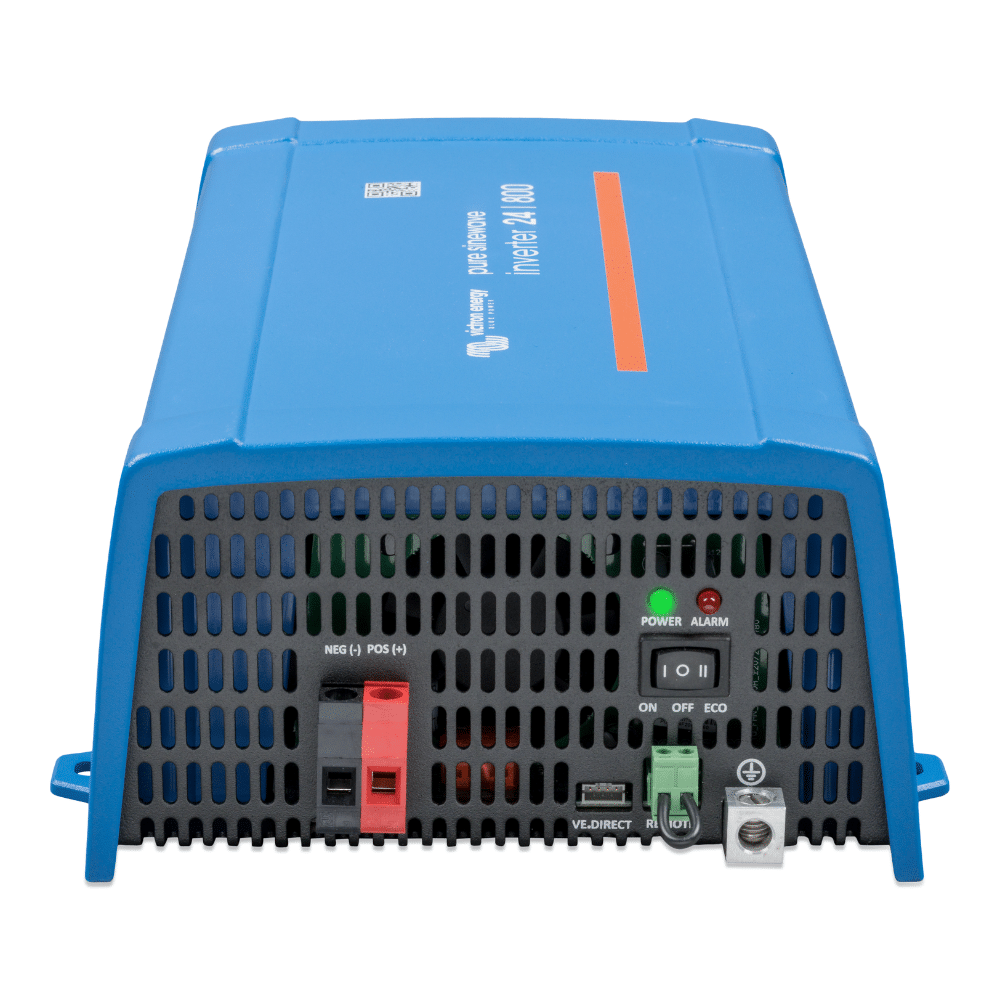

VICTRON ENERGY Phoenix Inverter 24/800 120V NEMA GFCI – PIN241800510
The Victron Energy Phoenix Inverter 24V/800VA 120V NEMA GFCI is a high-efficiency, pure sine wave inverter designed for professional and residential applications. Built with robust full-bridge toroidal transformer technology, this inverter offers exceptional reliability and performance. The pure sine wave output ensures seamless operation of sensitive electronics, making it ideal for off-grid, marine, and backup power systems.
Equipped with VE.Direct communication, the Phoenix Inverter allows real-time monitoring and configuration via VictronConnect. Additionally, its ECO mode helps reduce power consumption when loads are minimal. With its compact size, high surge capacity, and advanced safety features, this inverter is an excellent choice for various power needs.
Key Features:
- Pure Sine Wave Output: Provides stable and clean power for sensitive electronics and appliances.
- High Surge Power: Capable of handling inrush currents for devices like motors and compressors.
- VE.Direct Communication Port: Enables easy monitoring and customization through VictronConnect.
- ECO Mode for Energy Efficiency: Reduces standby consumption by automatically shutting down at low loads.
- Remote On/Off Capability: Allows external control using a switch or relay.
- Comprehensive Protection Features: Guards against short circuits, overloads, over-temperature, and battery voltage issues.
- Compact and Lightweight Design: Durable steel chassis with plastic cover, easy to install in various applications.
- GFCI Outlet for Safety: NEMA 5-15R Ground Fault Circuit Interrupter outlet for enhanced user protection.
The Phoenix Inverter 24V/800VA is built for efficiency and adaptability, supporting both 50Hz and 60Hz operation and featuring an adjustable output voltage range. The dynamic low-battery cutoff extends battery life by adjusting shutoff levels based on load demand. It is also compatible with Victron’s remote monitoring and control accessories, including Bluetooth connectivity via an optional VE.Direct Bluetooth Smart dongle.
Whether for off-grid applications, mobile power setups, or emergency backup systems, this inverter delivers reliable AC power with a compact footprint. The optional automatic transfer switch ensures seamless switching between power sources, making it a versatile solution for various energy needs.
Specifications:
- Input Voltage Range: 18.4 – 34 VDC
- Output Voltage: 120 VAC ±3%
- Frequency: 50Hz or 60Hz ±0.1%
- Continuous Output Power at 25°C: 800 VA / 650 W
- Continuous Output Power at 40°C: 560 W
- Peak Power: 1500 W
- Maximum Efficiency: 91%
- Zero Load Power Consumption: 6.5 W (ECO mode: 1.5 W)
- Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
- Humidity (Non-Condensing): Max 95%
- Protection Features: Overload, short circuit, high/low battery voltage, over-temperature, DC ripple
- Connectivity: VE.Direct communication port for monitoring and control
- Battery Connection: Screw terminals (no special tools required for installation)
- AC Output Connection: NEMA 5-15R GFCI outlet
- Enclosure Material & Color: Steel chassis with plastic cover, blue (RAL 5012)
- Protection Category: IP21
- Weight: 5.5 kg (12 lbs)
- Dimensions: 105 x 216 x 305 mm (4.1 x 8.5 x 12.1 inches)
- Compliance: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
The Victron Energy Phoenix Inverter 24V/800VA 120V NEMA GFCI is a reliable and efficient power solution, offering advanced features and high performance in a compact and durable design. Whether used for marine, off-grid, or backup power applications, it ensures smooth and uninterrupted power delivery.
