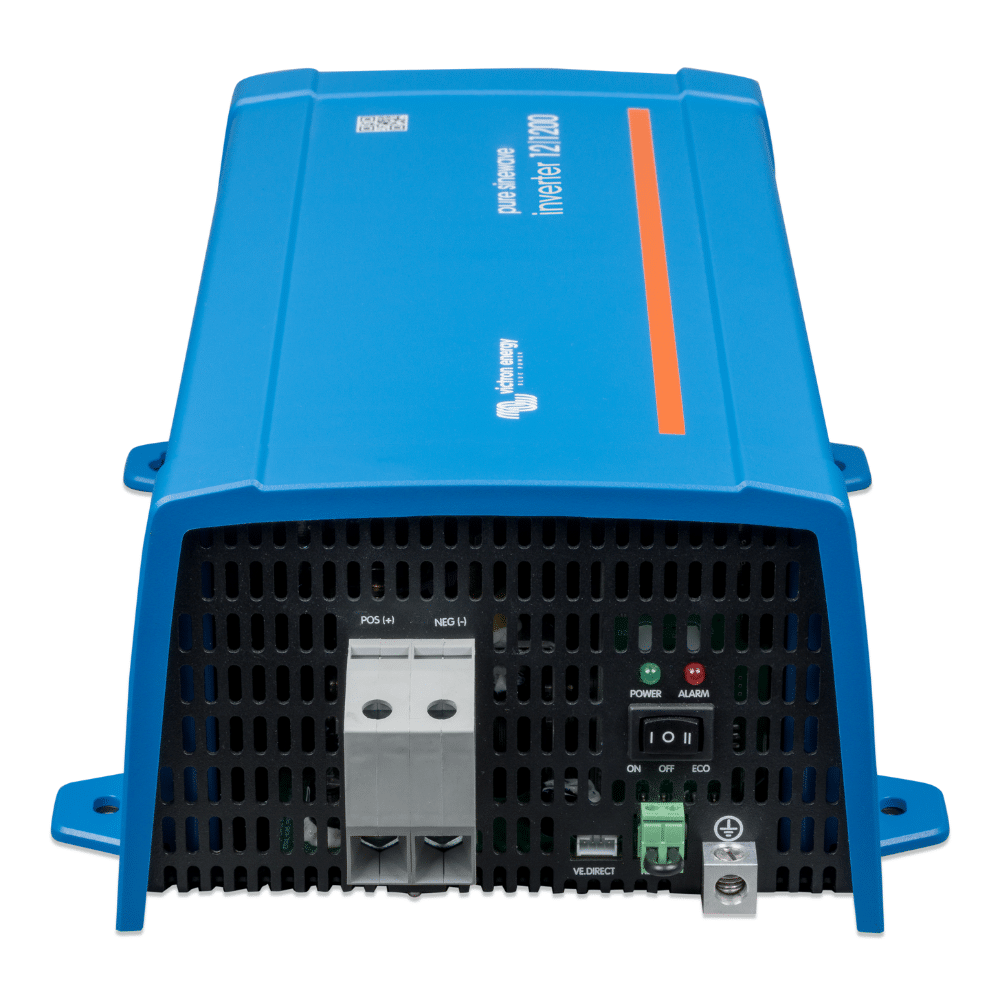

VICTRON ENERGY Phoenix Inverter 12V/1200VA 120V NEMA GFCI – PIN122122510

Description

VICTRON ENERGY Phoenix Inverter 12/1200 120V NEMA GFCI – PIN122122510

The Victron Energy Phoenix Inverter 12V/1200VA 120V NEMA GFCI is a high-efficiency pure sine wave inverter, engineered to deliver reliable AC power for off-grid, marine, RV, and backup power applications. Featuring full bridge plus toroidal transformer technology, this inverter provides stable and clean electricity, making it ideal for powering sensitive electronics. Designed with VE.Direct communication capabilities, users can remotely monitor and configure settings using VictronConnect software via USB or Bluetooth.

The Phoenix Inverter 12/1200 ensures high surge power capability, allowing it to handle start-up loads from appliances like LED converters and electric tools. With a built-in NEMA GFCI outlet, it meets UL 458 standards for enhanced electrical safety. Additionally, ECO mode reduces energy consumption by automatically entering standby mode when loads are low, making it an efficient and sustainable power solution.

Key Features:

• True Sine Wave Output: Provides clean and stable AC power, safe for all electronics.
• High Surge Capability: Handles peak loads up to 2200W, ensuring seamless operation of power tools and appliances.
• VE.Direct Communication Port: Enables remote monitoring and configuration via Bluetooth or USB.
• Energy-Saving ECO Mode: Automatically reduces power consumption when loads are minimal.
• NEMA GFCI Outlet: Built-in ground fault circuit interrupter for added safety and compliance with UL 458 standards.

The Phoenix Inverter 12/1200 is designed for maximum durability, with short-circuit protection, overload protection, and dynamic battery cut-off settings. Its compact, lightweight construction and rugged steel chassis make it a versatile and portable power solution.

Specifications:

• Model: Phoenix Inverter 12V/1200VA 120V NEMA GFCI (PIN122122510)
• Input Voltage Range: 9.2 – 17V DC
• Output Voltage: 120V AC ±3%
• Output Frequency: 50Hz or 60Hz (adjustable)
• Continuous Power Output (25°C): 1200VA (1000W)
• Continuous Power Output (40°C): 850W
• Peak Power: 2200W
• Efficiency: 91%
• Zero Load Power Consumption:
  • Normal Mode: 7W
  • ECO Mode: 1W
• Communication Port: VE.Direct (for remote monitoring and configuration)
• Protection Features: Overload, Short Circuit, Battery Over/Under Voltage, Over Temperature
• Operating Temperature Range: -40°C to +65°C
• Enclosure: Steel chassis with plastic cover, IP21 Rated
• Battery Connection: Screw terminals
• Weight: 7.4 kg (16.3 lbs)
• Dimensions (H x W x D): 105 x 216 x 305 mm (4.1 x 8.5 x 12.1 inches)

The Victron Energy Phoenix Inverter 12V/1200VA 120V NEMA GFCI is a compact, efficient, and feature-rich inverter, ideal for off-grid power, marine, RV, and emergency backup applications.
