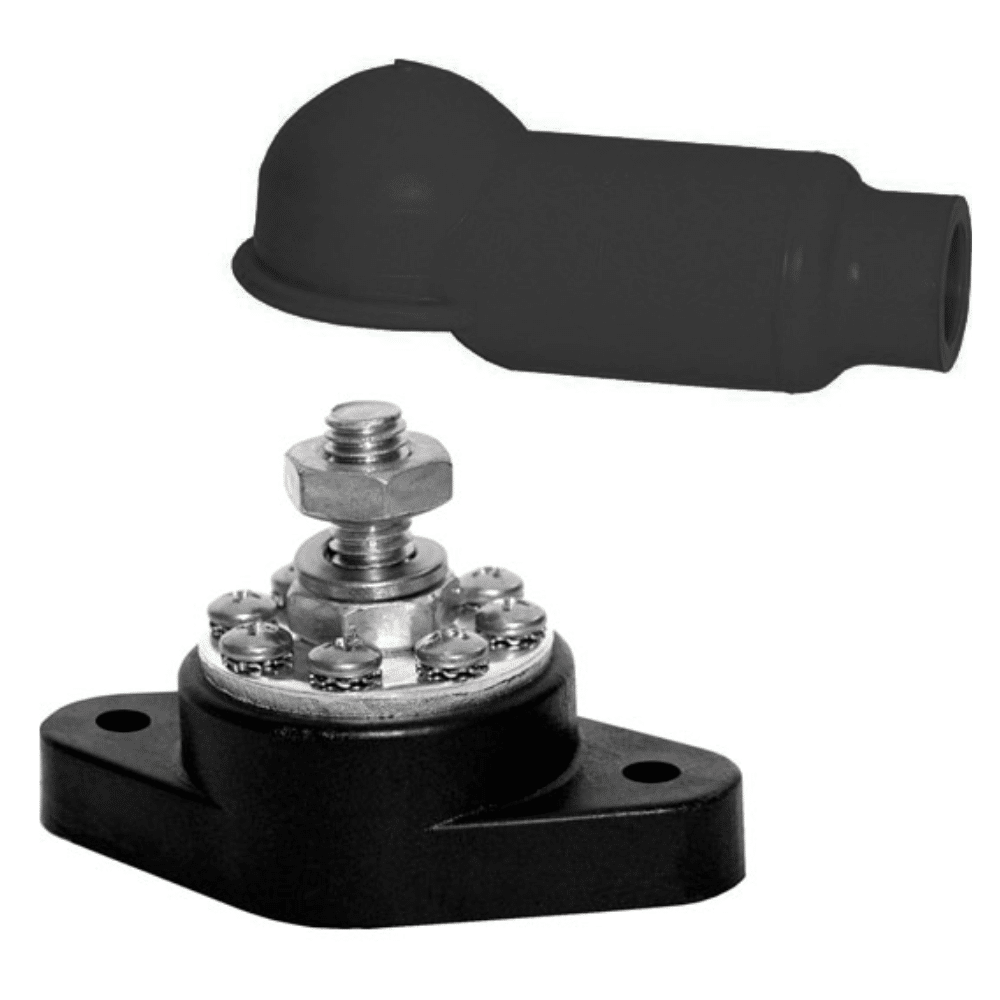

VERTEX 3/8″ Black 8-Point Power Post with Insulator – 81713

Description

VERTEX 3/8" Black 8-Point Power Post with Insulator – 81713 is an 8-point marine power-distribution post for collecting multiple branch conductors around a high-current main stud.

VERTEX rates the assembly to 48 VDC. The connection plate is nickel-plated copper, with a glass-filled nylon base and corrosion-resistant post/hardware; #8-32 branch screws provide eight auxiliary connection points.

Features

• 3/8″ main stud
• Eight #8-32 branch connection screws
• Black insulated base
• 48 VDC maximum rating
• Nickel-plated copper connection plate
• 2.5″ mounting-centre spacing

Specifications

• Brand: VERTEX Marine
• Manufacturer Part Number: 81713
• Configuration: 8-point distribution post
• Main stud: 3/8″
• Branch screws: 8 x #8-32
• Colour: Black
• Maximum voltage: 48 VDC
• Connection plate: Nickel-plated copper
• Base: Glass-filled nylon
• Mounting centres: 2.5″
