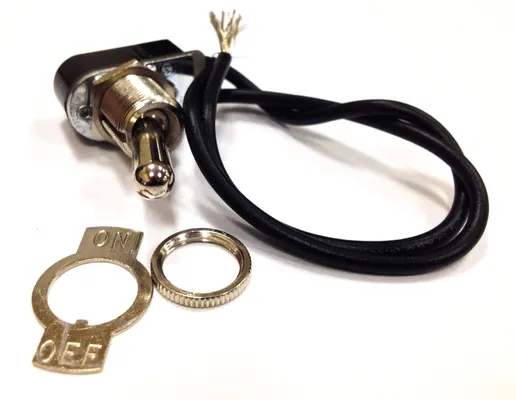

SIERRA Heavy-Duty Toggle Switch, ON-OFF SPST, 35A DC / 6A AC – TG21050-1

Description

SIERRA Heavy-Duty Toggle Switch, ON-OFF SPST, 35A DC / 6A AC – TG21050-1

A high-current two-position toggle switch for simple ON/OFF marine accessory circuits that need more current capacity than Sierra’s standard 25A toggle line.

• ON-OFF SPST switching
• 35A at 12V DC rating
• 6A at 125V AC rating
• Chrome-plated bat handle
• Two 6-inch wire leads simplify connection

The 35A DC rating makes this a useful step up from standard 25A toggles, but conductor size and circuit protection still need to be selected for the actual load.

Specifications

• Part number: TG21050-1
• Function: ON-OFF SPST
• DC rating: 35A @ 12V DC
• AC rating: 6A @ 125V AC
• Mounting stem: 15/32 in. long x 15/32-32
• Leads: Two 6 in. wire leads
• Handle: Chrome-plated bat
