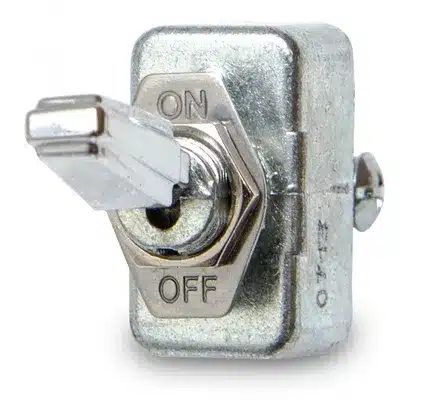

SIERRA Heavy-Duty 50A Toggle Switch, ON-OFF SPST – TG21500

Description

SIERRA Heavy-Duty 50A Toggle Switch, ON-OFF SPST – TG21500

Sierra’s high-current maintained ON/OFF toggle for 12V loads that require substantially more capacity than the standard 20A/25A switch families.

• ON-OFF SPST switching
• 50A at 12V DC rating
• Tough zinc die-cast body
• Chrome-plated plastic handle with metal core
• Heavy copper screw terminals

Use appropriately sized conductors and circuit protection for high-current applications. The 50A switch rating does not replace overcurrent protection.

Specifications

• Part number: TG21500
• Style: Heavy-duty 50A toggle
• Function: ON-OFF SPST
• Rating: 50A @ 12V DC
• Mounting stem: 15/32 in. long x 15/32-32
• Terminals: Heavy copper screw
• Body: Zinc die-cast
