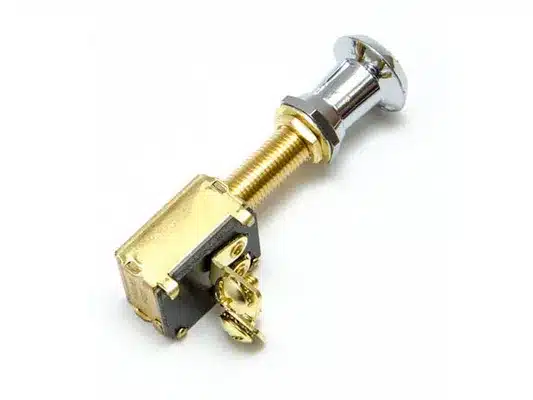

SIERRA Heavy-Duty Push-Pull Switch, OFF-ON SPST, Chrome Knob – MP39520

Description

SIERRA Heavy-Duty Push-Pull Switch, OFF-ON SPST, Chrome Knob – MP39520

The SIERRA MP39520 is a heavy-duty two-position marine push-pull switch designed for straightforward ON/OFF accessory control. It combines a solid-brass switch body with a chrome-plated plastic knob and screw terminals for a durable, serviceable helm or panel installation.

• OFF-ON SPST two-position function
• Pull-for-ON action
• Solid-brass construction
• Chrome-plated plastic knob and 3/8 in mounting bushing
• Rated 15 A at 12 VDC; two screw terminals; panels up to 1 in thick

For replacement or new-panel work, match switch function, electrical rating, mounting-stem size, panel thickness and terminal arrangement to the circuit being controlled.

Specifications:

• Switch function: OFF-ON
• Circuit: SPST
• Rating: 15 A @ 12 VDC
• Mounting bushing: 3/8 in
• Maximum panel thickness: 1 in
• Terminals: 2 screw
• Knob: chrome-plated plastic

Interchange / Cross-Reference:

• Attwood 7563-6
• BEP 1001307
• SeaSense 50031162
• Valmar 31162
