SIERRA 8-Gang Isolated Junction Block – FS45640

Description

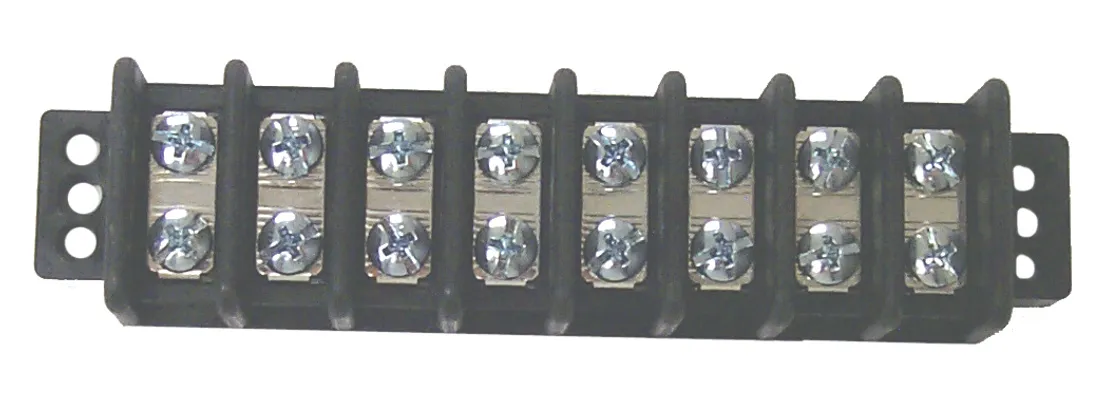

SIERRA 8-Gang Isolated Junction Block – FS45640

Sierra FS45640 is an eight-circuit junction block in which each screw pair forms a separate isolated circuit.

• Eight isolated circuit pairs
• Sixteen 10-32 screw terminals
• Closed back insulates live terminals from the mounting surface
• Nickel-plated brass conductive components
• Product dimensions: 13.54 x 3.33 x 2.06 cm

Specifications

• Manufacturer: Sierra
• Part Number: FS45640
• Configuration: 8 isolated circuits
• Terminal Hardware: 16 x 10-32 screws
• Bus Material: Nickel-plated brass
• Product Dimensions: 13.54 x 3.33 x 2.06 cm

Use when multiple independent point-to-point connections are needed without a common bus.
