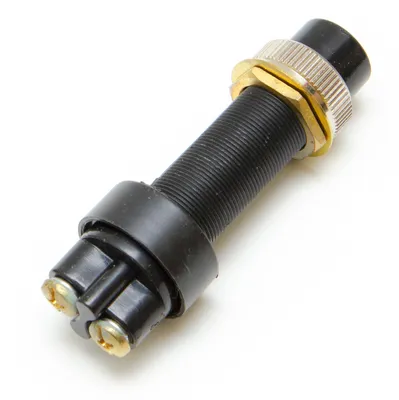

SIERRA Heavy-Duty Momentary Push-Button Switch, 30A – MP39160

Description

SIERRA Heavy-Duty Momentary Push-Button Switch, 30A – MP39160

Sierra MP39160 is a normally-off momentary push-button switch for high-current 12 VDC marine control circuits.

• Momentary OFF-(ON), SPST switching action
• Rated 30A at 12 VDC
• Corrosion-resistant plastic body
• Rubber boot nut helps seal the panel opening
• Two screw terminals for circuit connection

Specifications

• Manufacturer: Sierra
• Part Number: MP39160
• Switch Type: SPST momentary OFF-(ON)
• Electrical Rating: 30A at 12 VDC
• Mounting Stem: 36.5 mm long x 15.9 mm diameter (1-7/16 x 5/8 in.)
• Terminals: 2 screw terminals

Use on a 12 VDC circuit within the stated 30A switch rating and with appropriate overcurrent protection.
