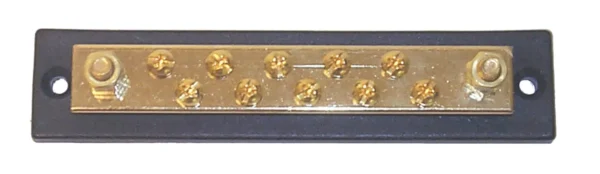

SIERRA 10-Gang Heavy-Duty Bus Bar, 150A – FS40750

Description

SIERRA 10-Gang Heavy-Duty Bus Bar, 150A – FS40750

Sierra FS40750 provides a common distribution point for higher-count DC circuits and can be used as either a positive feed or ground bus.

• 10 branch screw terminals plus two main stud terminals
• 150A rated brass terminal bar
• Ten 10-32 screw terminals
• Two 1/4-20 stud terminals
• Product dimensions: 14.61 x 3.18 x 3.02 cm

Specifications

• Manufacturer: Sierra
• Part Number: FS40750
• Configuration: 10-gang bus bar
• Current Rating: 150A
• Branch Terminals: 10 x 10-32 screws
• Main Terminals: 2 x 1/4-20 studs
• Product Dimensions: 14.61 x 3.18 x 3.02 cm

Select conductor and overcurrent protection sizes appropriate to the connected loads and 150A bus rating.
