SEA-DOG 304 Stainless Steel Shoulder Eye Bolt, M12 x 1.75 thread, 3-15/16 in usable length – 080504-1

Description

SEA-DOG 304 Stainless Steel Shoulder Eye Bolt, M12 x 1.75 thread, 3-15/16 in usable length – 080504-1

This machined 304 stainless steel shoulder eye bolt is intended primarily for inline loads and can accommodate limited side loading. It uses metric threads, includes a matching metric nut and washer, and has a published breaking strength of 10,100 lb.

• Constructed from machined 304 stainless steel
• Designed primarily for inline loading with limited side loading
• Metric nut and washer are included
• Shouldered eye helps support limited angular loading

What’s in the Box

• Eye bolt
• Metric nut
• Washer

Specifications

• Part number: 080504-1
• Material: Machined 304 stainless steel
• Thread: M12 x 1.75
• Usable length: 3-15/16″
• Breaking strength: 10,100 lb

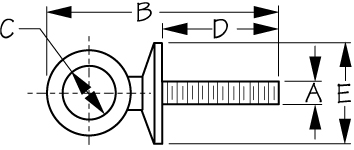

• Published drawing dimensions: B: 5-1/2″; C: 3/4″; D: 3-15/16″; E: 1-3/16″
• Customer quantity: Single item
