SEA-DOG 316 Stainless Steel Eye Nut, 1/4-20 NC – 078106-1

Description

SEA-DOG 316 Stainless Steel Eye Nut, 1/4-20 NC – 078106-1

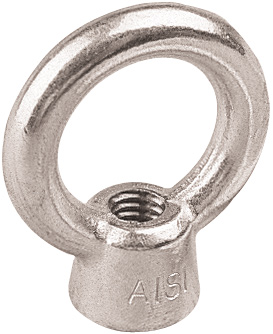

This 1/4″-20 NC eye nut threads onto a matching bolt or threaded rod to create an adjustable securement point. Its 316 stainless steel construction is well suited to exposed marine rigging and tie-down installations.

• Constructed from investment-cast 316 stainless steel
• Threads onto matching bolts or threaded rod
• Creates an adjustable securement point for different material thicknesses
• National Coarse thread size is listed in the specifications

What’s in the Box

• One eye nut

Specifications

• Part number: 078106-1
• Material: Investment-cast 316 stainless steel
• Thread: 1/4″-20 NC

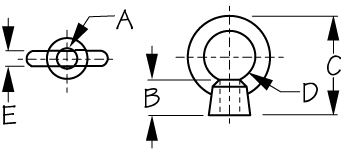

• Published drawing dimensions: A: 1/4″-20 NC; B: 7/16″; C: 1-1/4″; D: 5/8″; E: 3/16″
• Customer quantity: Single item
