SEA-DOG 5-1/2″ x 4-1/2″ Heavy-Duty Centre-Pin Butt Hinge – 205237

Description

SEA-DOG 5-1/2" x 4-1/2" Heavy-Duty Centre-Pin Butt Hinge – 205237

The SEA-DOG 205237 is a 5-1/2" x 4-1/2" heavy-duty centre-pin butt hinge designed for larger heavy doors that must fold flat using an ANSI commercial-pattern centre-pin hinge. Its geometry and mounting pattern are specific to this hinge style, so it should be matched to the door, lid, hatch, or ladder arrangement before drilling.

• Investment-cast 316 stainless steel with nylon bearings construction

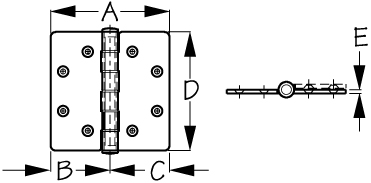

• Published open footprint approximately 139.7 x 114.3 mm
• Eight 1/4-inch flat-head fasteners; not included
• Centre pin allows the hinge to fold flat
• Integral nylon bearings reduce rattle and smooth the hinge action
• Commercial ANSI template screw-hole pattern
• Supplied as one hinge

What’s in the Box

• 1 hinge

Specifications

• Manufacturer: SEA-DOG
• Part Number: 205237
• Product Type: 5-1/2" x 4-1/2" Heavy-Duty Centre-Pin Butt Hinge
• Material: Investment-cast 316 stainless steel with nylon bearings
• Open Footprint: 139.7 x 114.3 mm
• Material Thickness: 4.8 mm
• Fasteners: Eight 1/4-inch flat-head fasteners; not included
• Quantity: 1 hinge
