SEA-DOG 6″ x 6″ Heavy-Duty Centre-Pin Butt Hinge – 205238

Description

SEA-DOG 6" x 6" Heavy-Duty Centre-Pin Butt Hinge – 205238

The SEA-DOG 205238 is a 6" x 6" heavy-duty centre-pin butt hinge designed for very large doors or panels that need a strong hinge capable of folding flat. Its geometry and mounting pattern are specific to this hinge style, so it should be matched to the door, lid, hatch, or ladder arrangement before drilling.

• Investment-cast 316 stainless steel with nylon bearings construction

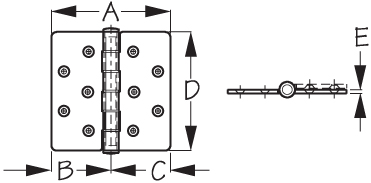

• Published open footprint approximately 152.4 x 152.4 mm
• Ten 1/4-inch flat-head fasteners; not included
• Centre pin allows the hinge to fold flat
• Integral nylon bearings reduce rattle and smooth the hinge action
• Supplied as one hinge

What’s in the Box

• 1 hinge

Specifications

• Manufacturer: SEA-DOG
• Part Number: 205238
• Product Type: 6" x 6" Heavy-Duty Centre-Pin Butt Hinge
• Material: Investment-cast 316 stainless steel with nylon bearings
• Open Footprint: 152.4 x 152.4 mm
• Material Thickness: 4.8 mm
• Fasteners: Ten 1/4-inch flat-head fasteners; not included
• Quantity: 1 hinge
