SEA-DOG 316 Stainless Steel 90° Volcano Rail Base for 1 in Tubing, 3-11/16 x 3-3/8 in – 281936-1

Description

SEA-DOG 316 Stainless Steel 90° Volcano Rail Base for 1 in Tubing, 3-11/16 x 3-3/8 in – 281936-1

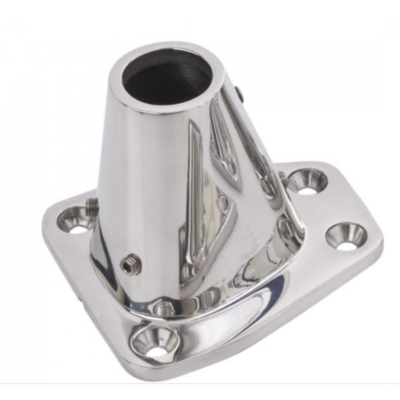

The SEA-DOG 316 Stainless Steel 90° Volcano Rail Base for 1 in Tubing, 3-11/16 x 3-3/8 in anchors 1 in handrail tubing to a deck or other flat mounting surface at a fixed 90° angle. Its volcano-profile rectangular base distributes the mounting load and the tube socket is secured with set screws after the rail is aligned.

• Holds 1 in outside-diameter handrail tubing at 90°
• Volcano-profile rectangular mounting base: 3-11/16 x 3-3/8 in
• Installs with four 1/4 in FH fasteners (not included)
• Includes tube-retaining set screws where applicable
• Investment-cast 316 stainless steel for corrosion resistance

What’s in the Box

• One 90° volcano rail base
• Tube-retaining set screw(s), where applicable

Specifications

• Product type: 90° Volcano Rail Base
• Tube outside diameter: 1 in
• Rail angle: 90°
• Base size: 3-11/16 x 3-3/8 in
• Mounting fasteners: Four 1/4 in FH, not included
• Material: Investment-cast 316 stainless steel
• Recommended tube wall: 0.049 in
