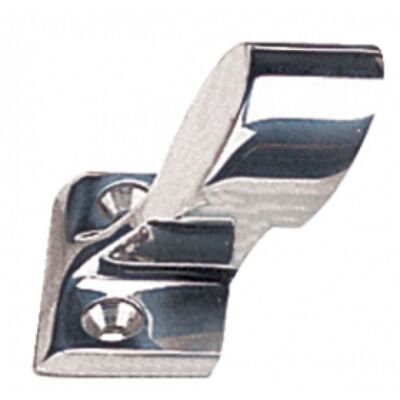

SEA-DOG 316 Stainless Steel 60° End Handrail Fitting for 1 in Tubing – 285161-1

Description

SEA-DOG 316 Stainless Steel 60° End Handrail Fitting for 1 in Tubing – 285161-1

The SEA-DOG 316 Stainless Steel 60° End Handrail Fitting for 1 in Tubing terminates a handrail section at the mounting base. It establishes the published 1-7/8 in rail height and secures the tubing with an internal set screw before the base is fastened to the mounting surface.

• Fits 1 in outside-diameter handrail tubing
• Rail height: 1-7/8 in
• Terminates a handrail section at the mounting base
• Installs with 1/4 in FH fasteners (not included)
• Investment-cast 316 stainless steel with tube-retaining set screw

What’s in the Box

• One 60° end handrail fitting
• Tube-retaining set screw

Specifications

• Product type: 60° End Handrail Fitting
• Tube outside diameter: 1 in
• Rail height: 1-7/8 in
• Mounting fastener: 1/4 in FH, not included
• Material: Investment-cast 316 stainless steel
• Recommended tube wall: 0.049 in
