RAYMARINE Axiom+9 RV Multi 9″Display – E70637-00-102

Description

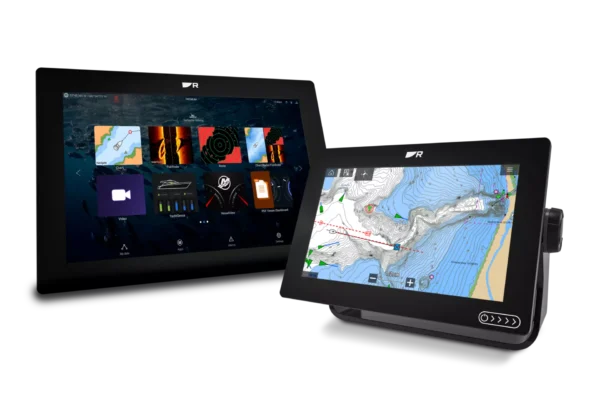

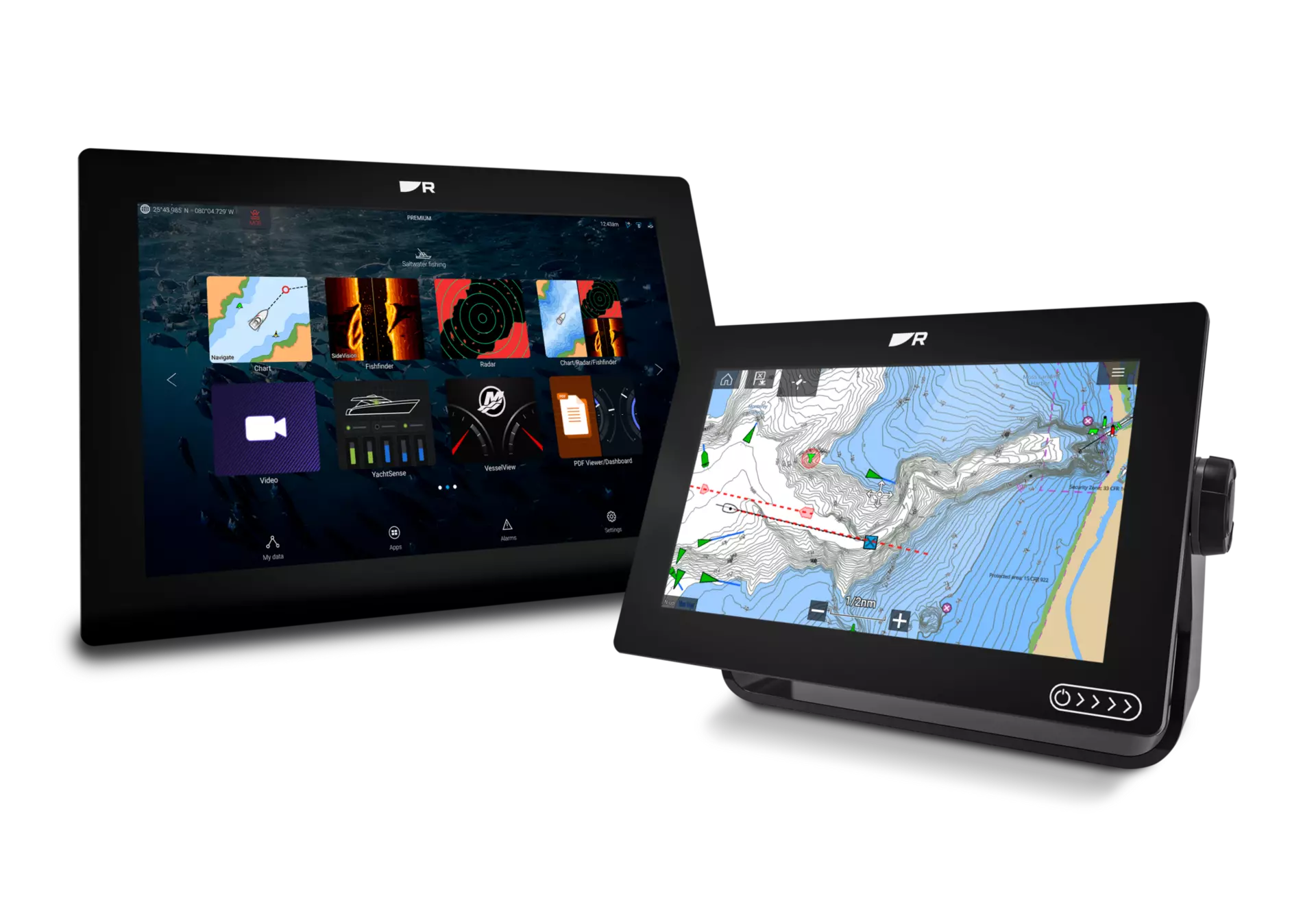

The Raymarine Axiom+ 9 RV Multi-Function Display is a powerful and intuitive chartplotter designed for serious boaters and anglers. With a high-performance quad-core processor, ultra-bright 9-inch IPS touchscreen display, and integrated RealVision™ 3D sonar, the Axiom+ 9 RV delivers unmatched speed, clarity, and sonar capability. Built on the rugged and expandable LightHouse 3 operating system, it’s a future-ready system that evolves with your needs.

Key Features:

• 9” High-Definition IPS Display – Bright, responsive, and easy to view even in direct sunlight.

• Integrated RealVision™ 3D Sonar – Combines CHIRP, DownVision™, SideVision™, and 3D imaging.

• Built-In GPS/GNSS Receiver – Fast and accurate 10Hz position tracking.

• LightHouse 3 Operating System – Clean, intuitive, and highly customizable interface.

• Expandable with Raymarine Accessories – Compatible with radar, autopilot, cameras, AIS, and more.

Detailed Overview:

The Raymarine Axiom+ 9 RV is engineered to deliver superior all-in-one navigation and sonar performance. Its RealVision™ 3D sonar provides lifelike underwater imaging, enabling users to pinpoint structures and fish with extraordinary precision. This model is ideal for anglers and mariners who need detailed sonar data and fast chart plotting in a single compact package.

Designed for rugged marine environments, the Axiom+ 9 RV features a bonded all-glass touchscreen with HydroTough™ coating, enhancing durability and usability in wet conditions. With built-in support for Navionics, C-MAP, and Raymarine’s own LightHouse charts, this unit gives boaters access to detailed and customizable nautical mapping.

Specifications:

• Display Size: 9″ diagonal

• Display Type: IPS multi-touch LCD

• Resolution: 1280 x 720 (HD)

• Sonar: RealVision™ 3D, CHIRP, DownVision™, SideVision™

• Internal GPS: 10Hz GNSS Receiver

• Processor: Quad-core

• Storage: 16GB internal memory

• Operating System: LightHouse 3

• Networking: Ethernet, NMEA2000, SeaTalkng, Wi-Fi, Bluetooth

• Memory Card Slots: 1 microSD (up to 32GB)

• Power Supply: 12V DC (typical 1.0A, max 1.6A)

• Mounting Options: Surface, trunnion, or flush mount

• Waterproof Rating: IPX6/IPX7

• Dimensions (W x H x D): Approx. 9.5” x 6.4” x 3”

• Weight: Approx. 4.1 lbs (1.85 kg)
