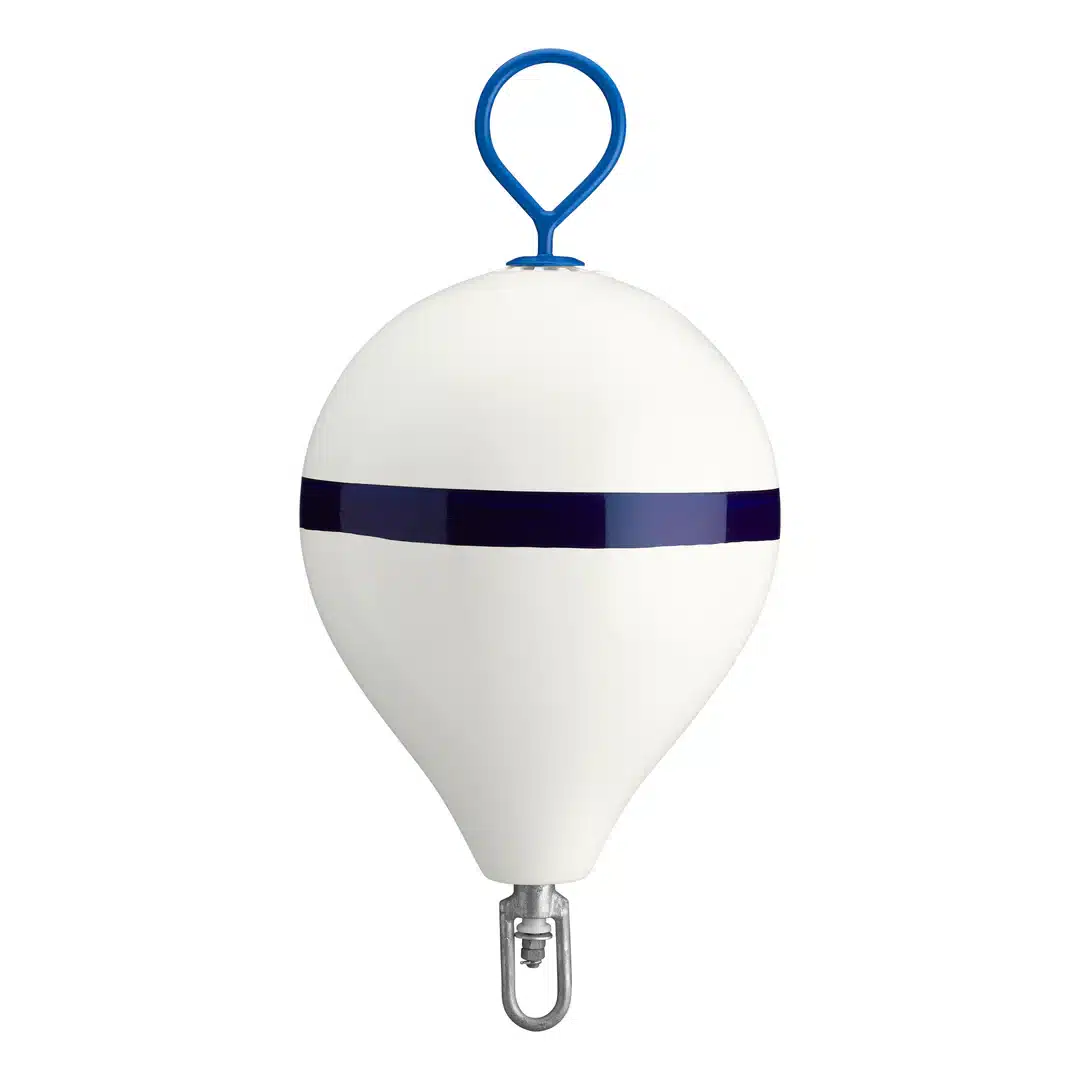

POLYFORM CM-Series White & Blue Mooring Buoy w/Galvanized Mooring Iron – CM-3 WH-STR

Description

POLYFORM CM-Series White & Blue Mooring Buoy – CM-3 WH-STR

The CM-Series Mooring Buoy is engineered for superior strength, durability, and boat protection, offering enhanced security for any mooring application. Its robust design features a galvanized steel mooring iron with a vinyl-coated eye for added protection. Each buoy includes a 1/2-inch central rod, a 4-3/8-inch reinforced eye, and a 1-1/2-inch swivel, ensuring long-lasting reliability. Trusted by boaters worldwide, the CM-Series has set the standard in mooring buoy design and is available in two color options: red, or white with a blue stripe.

Key Features:

• Durable Construction: Mooring iron made from vinyl-coated galvanized or stainless steel for maximum protection and longevity.
• Reinforced Design: Features a 4-3/8-inch eye and 1-1/2-inch swivel for added strength and versatility.
• Boat-Friendly Surface: Soft vinyl exterior safeguards boat finishes from damage.
• Secure Seal: Equipped with Polyform’s unique vinyl valve for a reliable seal.
• Built to Last: Even wall thickness ensures maximum durability and performance.

Proudly made in the USA, the CM-Series is a trusted choice for mooring solutions worldwide.

Model	CM-3
Diameter	17 in
Height	22 in
Circumference	53.4 in
Center Tube Diameter	0.625 in
Volume	11.8 gal
Unit Weight	12 lb
Height w/Iron	35 in
Max. Chain Weight	74 lb

Mooring Buoy Safety Tips

• In adverse conditions, the holding power of the mooring can be increased by lengthening the mooring pennant. This increases the scope of the mooring providing greater holding power.
• A second mooring pennant can be run to the top eye as a safety in case the primary pennant chafes through or fails.
• Shackles should be moused to prevent opening. Electricians plastic tie wraps are an excellent means of securing a shackle.
• Always use chafing gear where mooring lines run through bow chocks or are likely to contact deck hardware. A thimble on the shackled end will prevent chafe at the buoy.

Mooring Buoys Sizing Guide

To figure out what size buoy you will need, determine the weight of the chain it must support. All chain has a stated weight per foot. Never exceed the maximum chain weight (75% of the buoy’s displacement weight) from the buoy table below. These estimates are for ideal conditions, buoys placed in rougher conditions with strong currents and large tidal swings may require greater buoyancy and a larger size buoy.
