PERKO Figure 0493 3/4 in. Bronze Intake Water Strainer – 493-005-PLB

Description

PERKO Figure 0493 3/4 in. Bronze Intake Water Strainer – 493-005-PLB

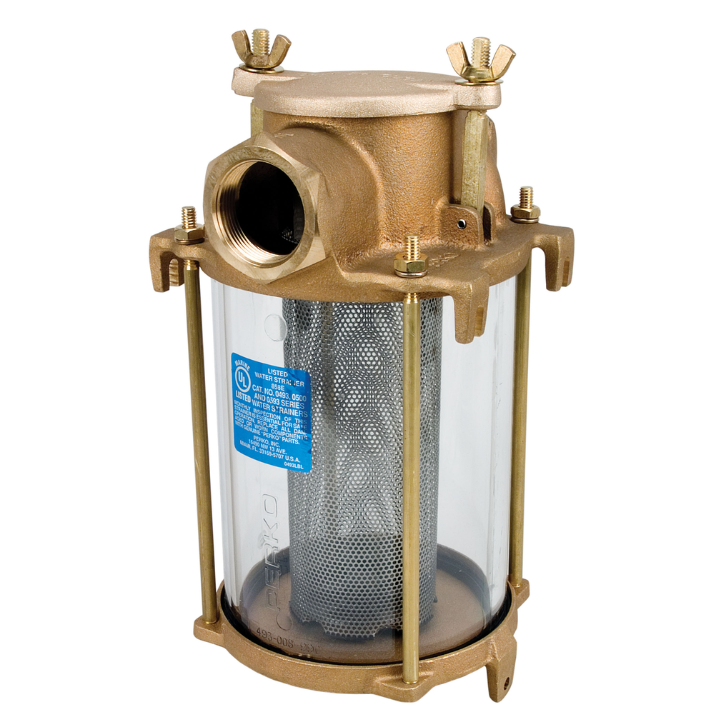

The PERKO Figure 0493 intake strainer protects engine-cooling, generator, air-conditioning and other raw-water systems by trapping debris before it reaches pumps and heat exchangers. A clear cylinder makes basket condition and water flow easy to inspect.

Product Details

• Female 3/4 in. NPT inlet and outlet connections for raw-water plumbing.
• Cast-bronze top and bottom castings with mounting lugs on both sides for flexible installation orientation.
• Clear polycarbonate cylinder allows visual inspection without opening the strainer.
• 316 stainless-steel basket minimizes galvanic interaction and uses 0.079-inch perforations with approximately 47% open area.
• Basket open-area-to-pipe-size ratio is 25:1.
• Four external tie rods keep metal hardware outside the water path and retain the cylinder assembly.
• Hinged cover lugs allow the cover and basket to be removed for cleaning without fully disassembling the body.
• A 1/4-inch NPT bronze drain plug in the bottom casting supports sediment removal and winterizing.
• Compatible mounting bracket: 0493045BKT.
• Use 0493DP599M or 0493DP599R; select cork for older models or rubber for newer models according to the original gasket material.

Specifications

• PERKO Manufacturer Part Number: 0493005PLB
• Product Type: Intake water strainer
• Certification: Marine UL Listed, 858E Strainer
• Pipe Size: 3/4 in. NPT
• Body Material: Cast bronze
• Cylinder Material: Clear polycarbonate
• Basket Material: 316 stainless steel
• Overall Height: 21.3 cm (8.375 in.)
• Overall Width: 11.4 cm (4.5 in.)
• Cylinder Dimensions: 8.9 cm OD x 15.2 cm high (3.5 x 6 in.)
• Basket Dimensions: 4.6 cm OD x 15.9 cm high (1.8125 x 6.25 in.)
• Screen-Hole Diameter: 2.0 mm (0.079 in.)
• Open Area: Approximately 47%
• Open-Area-to-Pipe Ratio: 25:1
• Recommended Gasket Kit: 0493DP599M or 0493DP599R
• Optional Mounting Bracket: 0493045BKT
