PERKO SPST Off-On Toggle Switch, 6A – 514-DP

Description

PERKO SPST Off-On Toggle Switch, 6A – 514-DP

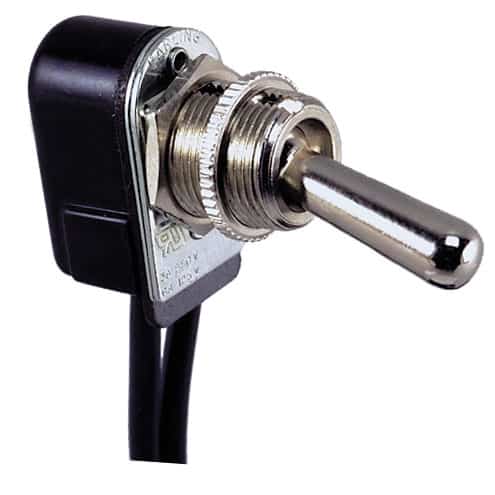

This compact marine toggle switch provides simple Off-On control for low-current lighting and accessory circuits. PERKO also specifies it as the replacement toggle switch for selected dome-light assemblies.

Product Details

• Nickel-plated brass toggle with a chrome-plated face nut.
• Single-pole, single-throw Off-On switching action.
• Rated for 6A at 12V, 24V and 32V.
• Fits panels up to 7.9 mm (5/16 in.) thick and requires a 12.7 mm (1/2 in.) mounting hole.
• Replacement switch identified for PERKO Figures 0555 and 0753 dome lights.
• Use appropriate over-current protection and marine-grade terminals for the connected circuit.

Specifications

• PERKO Manufacturer Part Number: 0514DP
• Switch Type: SPST toggle switch
• Function: Off-On
• Current Rating: 6A
• Voltage Rating: 12V, 24V or 32V
• Maximum Panel Thickness: 7.9 mm (5/16 in.)
• Neck Diameter: 11.1 mm (7/16 in.)
• Mounting-Hole Diameter: 12.7 mm (1/2 in.)
• Replacement Applications: PERKO Figures 0555 and 0753 dome lights
