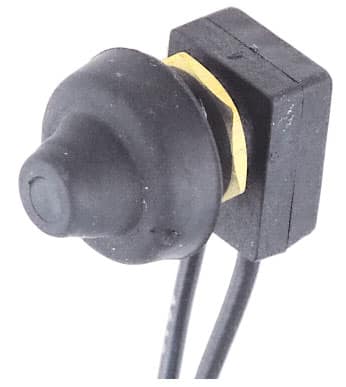

PERKO Weather-Resistant Push-On/Push-Off Switch, 10A – 701-DP
This compact latching switch changes state with each press, making it suitable for dome lights and other low-voltage marine accessory circuits within its published rating.
Product Details
- Push-on, push-off latching operation.
- Black polymer body with weather-resistant button cover.
- Rated for 10A at 12V, 24V and 32V DC.
- Fits panels up to 3.2 mm (1/8 in.) thick.
- Threaded neck diameter is 9.5 mm (3/8 in.).
- Also used as the replacement switch in selected PERKO surface-mount dome lights.
- Use correctly sized circuit protection and marine-grade wiring for the connected load.
Specifications
- PERKO Manufacturer Part Number: 0701DP
- Product Type: Push-button latching switch
- Material: Black polymer
- Operation: Push-on / push-off
- Electrical Rating: 10A at 12, 24 or 32V
- Maximum Panel Thickness: 3.2 mm (1/8 in.)
- Neck Diameter: 9.5 mm (3/8 in.)
