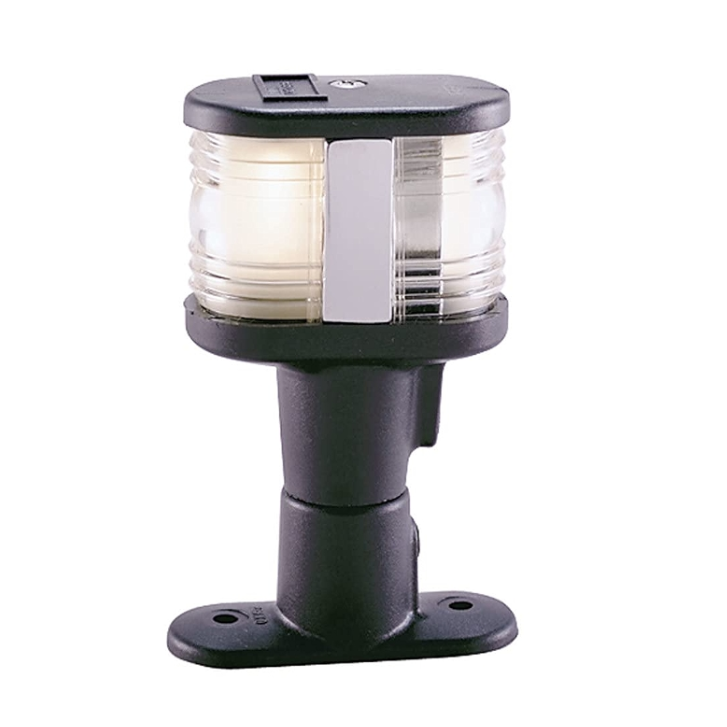

PERKO 12V Combination Masthead and White All-Round Navigation Light, Fixed – 1183-DP-CHR

Description

PERKO 12V Combination Masthead and White All-Round Navigation Light, Fixed – 1183-DP-CHR

This combined pole light provides the required masthead and anchor/all-round functions in separate compartments for vessels under 20 m. Its serviceable incandescent design uses replaceable bulbs, lenses and cap components.

Product Details

• USCG 3 nm certified for sail or power-driven vessels under 20 m (65.6 ft.).
• Two separate light compartments provide masthead and white all-round/anchor functions.
• Black polymer top and base with chrome-plated zinc-alloy components and a clear polymer lens.
• Gold-plated contacts and a 19.1 mm (3/4 in.) anodized-aluminum pole.
• Includes two 12V, 10W bulbs; each compartment draws approximately 0.80A.
• Replacement bulbs: 0071DP0CLR; replacement white lenses: 0278DP0WHT; replacement top cap: 1158DP0BLK.
• For approved legacy 24V applications on boats built before 1 November 2003, PERKO specifies 0072DP1CLR bulbs; consult PERKO for new-construction 24V applications.
• Fixed low-profile base provides a compact installation for cabin tops and other horizontal surfaces.

What’s in the Box

• Combination two-compartment light assembly.
• Two 12V bulbs.

Specifications

• PERKO Manufacturer Part Number: 1183DP0CHR
• Product Type: Combination masthead / white all-round navigation light
• Certification: USCG 3 nm
• Vessel Length: Under 20 m
• Mounting Style: Fixed
• Overall Height: 102 mm (4 in.)
• Base Dimensions: 25.4 x 66.7 mm (1 x 2-5/8 in.)
• Pole Diameter: 19.1 mm (3/4 in.)
• Voltage: 12V DC
• Bulbs: Two included, 10W each
• Current Draw: Approximately 0.80A per compartment
• Contacts: Gold plated
• Mounting Fasteners: #8 screws
