PERKO 22 in. Vertical Plug-In Combination Masthead and All-Round Light – 1124-DP2-CHR

Description

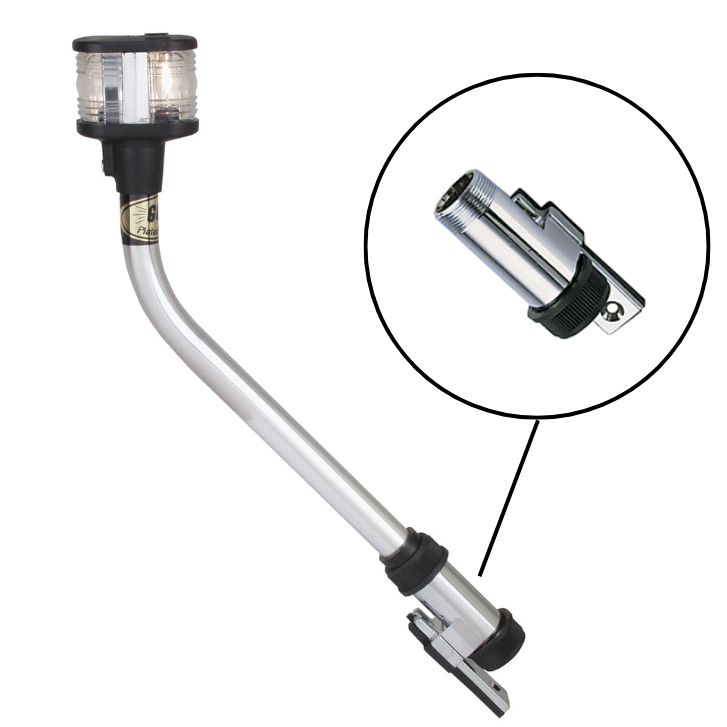

PERKO 22 in. Vertical Plug-In Combination Masthead and All-Round Light – 1124-DP2-CHR

This stow-away pole light combines separate masthead and white all-round compartments in one removable assembly for sail or power vessels under 20 m. Its vertical mounting base and 45-degree rake suit matching windshield and cabin-side installations.

Product Details

• Certified for use on sail or power-driven vessels under 20 m (65.6 ft.).
• Two independent light compartments provide masthead and white all-round/anchor functions.
• Black polymer and chrome-plated zinc-alloy light head.
• Chrome-plated zinc-alloy vertical plug-in base with waterproof cover.
• Stow-away 19.1 mm (3/4 in.) anodized-aluminum pole.
• Three-pin connection with gold-plated contacts.
• Polymer adapter supports flat or 45-degree V-type surfaces.
• Includes two 12V, 10W bulbs; each compartment draws approximately 0.80A.
• Replacement bulbs: 0071DP0CLR; replacement lenses: 0278DP0WHT; replacement top cap: 1158DP0BLK; replacement base/socket: 1124DP099A.

What’s in the Box

• Combination light and pole assembly.
• Vertical three-pin plug-in base.
• Waterproof base cover.
• Flat/V-mount adapter.
• Two 12V bulbs.

Specifications

• PERKO Manufacturer Part Number: 1124DP2CHR
• Product Type: Combination masthead / white all-round pole light
• Certification: USCG 3 nm
• Vessel Length: Under 20 m
• Mounting Orientation: Vertical plug-in
• Vertical Height: 559 mm (22 in.)
• Pole Rake: 45°
• Pole Diameter: 19.1 mm (3/4 in.)
• Base Dimensions: 19.1 x 57.2 mm (3/4 x 2-1/4 in.)
• Voltage: 12V DC
• Bulbs: Two included, 10W each
• Current Draw: Approximately 0.80A per compartment
• Contacts: Gold plated
• Mounting Fasteners: #8 screws
