PERKO 3-Pin Vertical Plug-In Base and Socket Assembly for Figure 1124 – 1124-DP-99A

Description

PERKO 3-Pin Vertical Plug-In Base and Socket Assembly for Figure 1124 – 1124-DP-99A

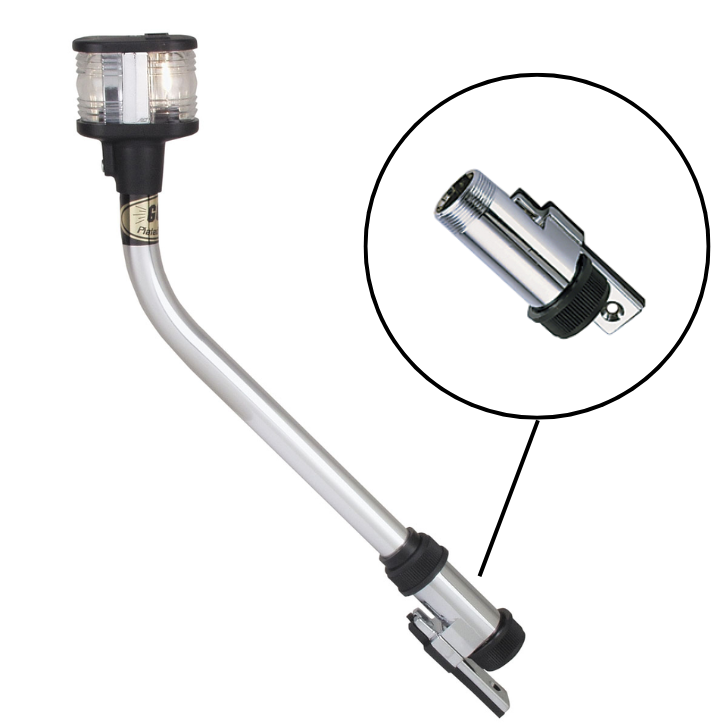

This factory service assembly replaces the deck-mounted base and electrical socket used by the Figure 1124 plug-in combination light. It preserves the original 45-degree rake and three-pin connection.

Product Details

• Chrome-plated zinc-alloy mounting base.
• Black polymer waterproof screw-on cover protects the socket when the pole is removed.
• Polymer adapter supports flat or V-type mounting surfaces.
• Vertical mounting orientation.
• Fits 19.1 mm (3/4 in.) poles using the Figure 1123 threaded collar style.
• Three gold-plated electrical contacts support the two-compartment masthead/all-round light circuit.
• Forty-five-degree pole rake.
• This is the replacement base/socket assembly only; pole, light head, bulbs and lenses are not included.

What’s in the Box

• Vertical three-pin base and socket assembly.
• Waterproof screw-on cover.
• Flat/V-mount adapter.

Specifications

• PERKO Manufacturer Part Number: 1124DP099A
• Product Type: Plug-in mounting base and socket assembly
• Compatible PERKO Figure: 1124
• Mounting Orientation: Vertical
• Pin Count: 3
• Pole Diameter: 19.1 mm (3/4 in.)
• Pole Rake: 45°
• Bracket Dimensions: 19.1 x 57.2 mm (3/4 x 2-1/4 in.)
• Contacts: Gold plated
• Finish: Chrome plated with black cover
