PERKO Non-Vented Gas Deck Fill for 1-1/2 in. Hose – 1313-DP-CHR

Description

PERKO Non-Vented Gas Deck Fill for 1-1/2 in. Hose – 1313-DP-CHR

This compact gasoline deck fill connects a 1-1/2-inch fill hose to the deck while relying on a separate tank-vent system. Its retained cap, grounding screw and replaceable cap options support straightforward installation and service.

Product Details

• Zinc-alloy body with a black polymer flange, cap and retaining strap.
• Connects to 38.1 mm (1-1/2 in.) gasoline fill hose.
• Non-vented design requires a separate correctly sized and routed fuel-tank vent.
• Includes a grounding screw, cap retainer and sealing gasket.

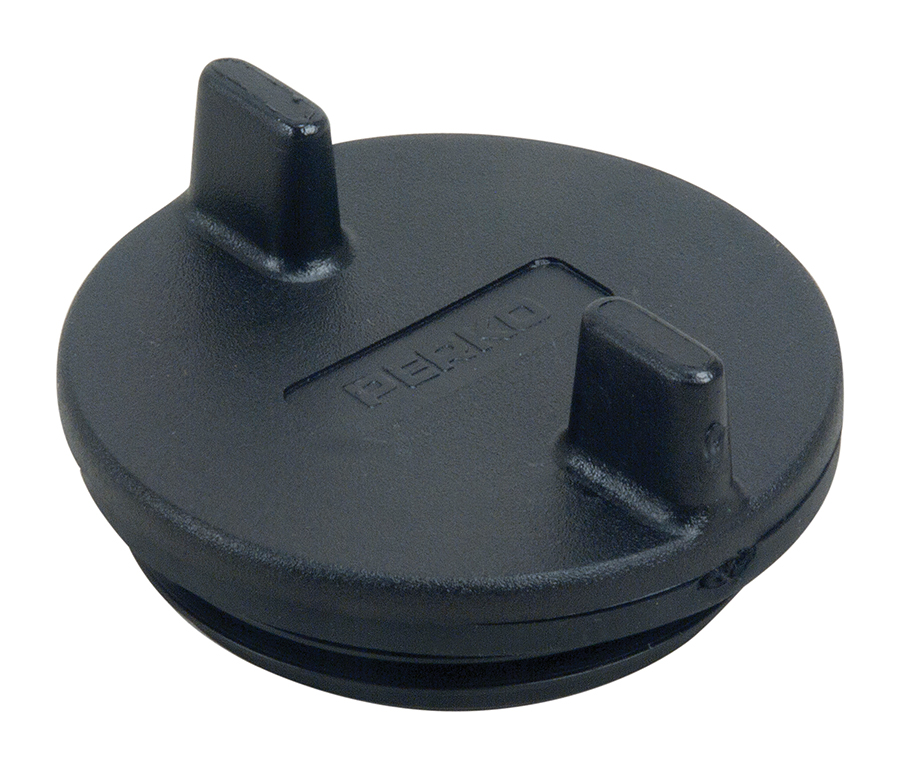

• Replacement non-locking cap: 0126DP0BLK; optional locking cap with two keys: 1324DP0BLK.
• Meets the cited USCG gasoline fuel-system requirements of 33 CFR 183, but this legacy fill is not represented as meeting 40 CFR 1060 evaporative-emissions requirements.
• Use marine fuel hose, secure it with appropriate clamps and pressure-test the completed fill and vent system after installation.

What’s in the Box

• Deck-fill assembly with retained cap and gasket.

Specifications

• PERKO Manufacturer Part Number: 1313DP0CHR
• Product Type: Non-vented gasoline deck fill
• Body Material: Zinc alloy
• Flange and Cap Material: Black polymer
• Fill-Hose Size: 38.1 mm (1-1/2 in.)
• Flange Outside Diameter: 79.4 mm (3-1/8 in.)
• Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
• Neck Length: 47.6 mm (1-7/8 in.)
• Mounting Fasteners: #6 screws
• Grounding Screw: Included
• Replacement Non-Locking Cap: 0126DP0BLK
• Optional Locking Cap: 1324DP0BLK
