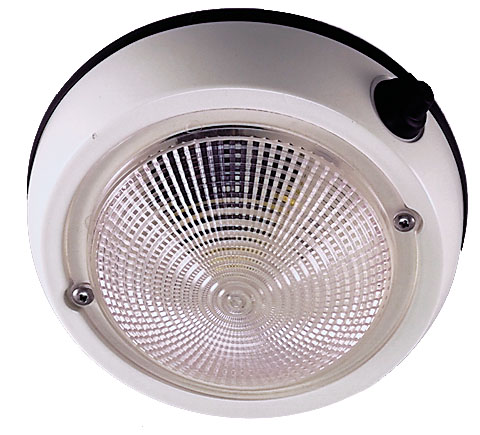

PERKO 12V Ivory Surface-Mount Dome Light with Switch, 5 in. – 1253-DP1-WHT

Description

PERKO 12V Ivory Surface-Mount Dome Light with Switch, 5 in. – 1253-DP1-WHT

This traditional surface-mount cabin light provides broad general illumination for berths, cabins, lockers and covered work areas. The integral push switch has a water-resistant boot for convenient control at the fixture.

Product Details

• Zinc-alloy housing with ivory PERKO-KOTE finish.
• Clear polymer lens and black vinyl mounting gasket.
• Five-inch outside-diameter base with a four-inch lens.
• Supplied with an 11W 12V bulb drawing approximately 0.94A; fixture maximum is 17W.
• Push-on/push-off switch is protected by a water-resistant boot.
• Replacement bulb: 0337012DP; switch: 0701DP; socket: 0024DP1; replacement 4-inch lens: Figure 0257.
• For 24V systems, PERKO specifies replacement bulb 0337014DP.

What’s in the Box

• Dome-light assembly.
• 12V 11W bulb.
• Black vinyl mounting gasket.

Specifications

• PERKO Manufacturer Part Number: 1253DP1WHT
• Product Type: Surface-mount dome light
• Housing Material: Zinc alloy
• Finish: Ivory PERKO-KOTE
• Lens: Clear polymer
• Voltage: 12V DC
• Supplied Bulb: 11W
• Current Draw: 0.94A
• Maximum Fixture Wattage: 17W
• Base Outside Diameter: 127.0 mm (5 in.)
• Lens Diameter: 101.6 mm (4 in.)
• Overall Depth: 47.6 mm (1-7/8 in.)
• Mounting Fasteners: #10 round-head screws
• Replacement Bulb: 0337012DP
• Replacement Switch: 0701DP
• Replacement Socket: 0024DP1
