Description

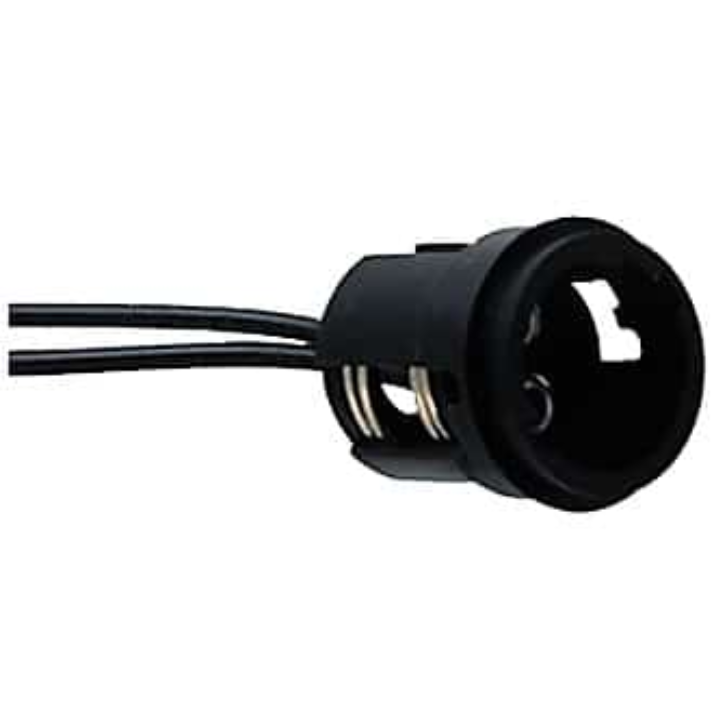

PERKO Double-Contact Bayonet Socket with 10 in. Pigtail – 24-DP1
This replacement socket accepts a double-contact bayonet-base marine bulb and provides pre-attached wire leads for service or new fixture assembly. It is used across numerous PERKO navigation-light and lighting-fixture applications.
Product Details
- Black polymer socket body with double-contact bayonet bulb connection.
- Supplied with approximately 254.0 mm (10 in.) of pigtail wire.
- Socket outside diameter is approximately 19.1 mm (3/4 in.).
- Used as the replacement socket in multiple PERKO fixtures; verify the fixture spare-parts listing before installation.
- Bulb and fixture housing are not included.
- Disconnect power and use marine-grade insulated connections when replacing the socket.
Specifications
- PERKO Manufacturer Part Number: 0024DP1
- Product Type: Double-contact bayonet lamp socket
- Body Material: Black polymer
- Pigtail Length: 254.0 mm (10 in.)
- Socket Outside Diameter: 19.1 mm (3/4 in.)
- Bulb Base: Double-contact bayonet
- Bulb Included: No
Reviews
There are no reviews yet.
