Description

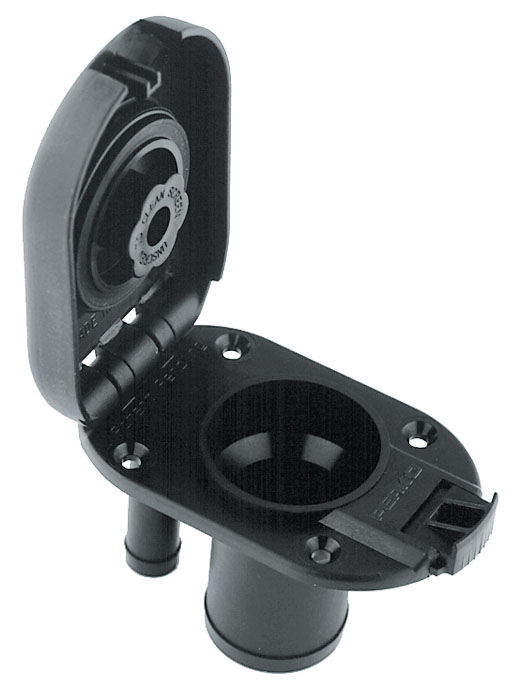

PERKO Black Polymer Vented Gasoline Deck Fill, Straight Neck – 1319-DPG-BLK
This all-polymer gasoline fill combines a 1-1/2-inch fill connection and 5/8-inch tank-vent connection in one compact fitting. The flip-top cap opens without a deck-plate key, and the integral anti-surge valve helps control liquid wellback during filling.
Product Details
- All-polymer body and flip-top cap in black.
- Straight neck configuration for the required hose-routing geometry.
- Connects to 38.1 mm (1-1/2 in.) fill hose and 15.9 mm (5/8 in.) vent hose.
- Integral tank vent incorporates an anti-surge valve.
- No grounding conductor or deck-plate key is required for the polymer fitting.
- The cap opens at the fitting, avoiding removal of a loose cap during filling.
- Gasoline version incorporates a flame arrestor in the integral vent path.
- Meets the cited USCG gasoline fuel-system requirements of 33 CFR 183, but this legacy fill is not represented as meeting 40 CFR 1060 evaporative-emissions requirements.
What’s in the Box
- Vented deck-fill assembly with integral flip-top cap.
Specifications
- PERKO Manufacturer Part Number: 1319DPGBLK
- Product Type: Vented gasoline deck fill
- Material: Polymer body and cap
- Colour: Black
- Neck Configuration: Straight
- Fill-Hose Size: 38.1 mm (1-1/2 in.)
- Vent-Hose Size: 15.9 mm (5/8 in.)
- Neck Length: 61.9 mm (2-7/16 in.)
- Mounting Fasteners: #10 screws
- Integral Anti-Surge Valve: Yes
- Flame Arrestor: Yes, gasoline versions only
- Ground Wire: Not required
- Deck-Plate Key: Not required
