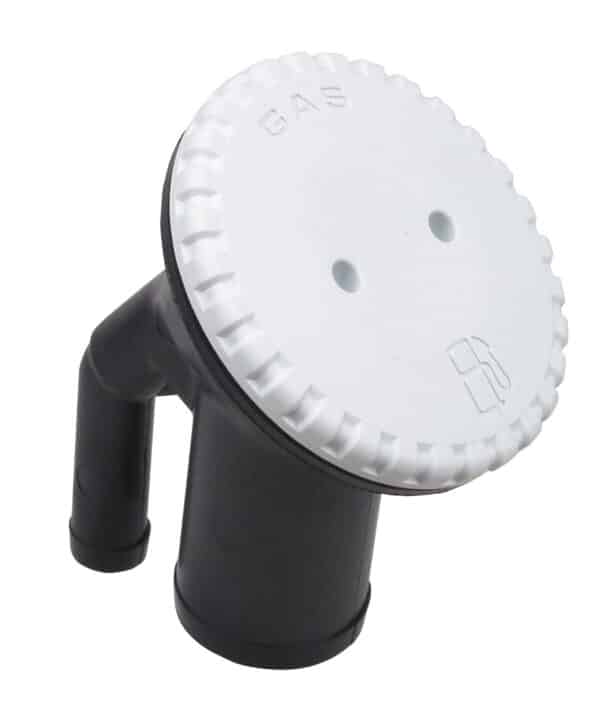

PERKO Polymer 1-1/2 in. Vented Gas Deck Fill, White Cap – 542-DPG-WHT

Description

PERKO Polymer 1-1/2 in. Vented Gas Deck Fill, White Cap – 542-DPG-WHT

This lightweight all-polymer deck fill combines the gasoline fill and tank-vent connections. Its angled neck assists hose routing while the integral vent system helps reduce splashback and supports cleaner automatic nozzle shutoff.

Product Details

• White polymer cap with black polymer body and integral cap retainer.
• Connects to 38.1 mm (1-1/2 in.) fill hose and 15.9 mm (5/8 in.) vent hose.
• Integral tank vent incorporates an anti-surge valve and flame arrestor.
• All-polymer construction means a grounding conductor is not required for the deck-fill fitting.
• Includes a deck-plate key; the retail package includes a mounting ring.
• Replacement gas cap with O-ring and retainer: 0542DPG99W; replacement O-ring: 054000099B; key: 1247DP0BLK.
• Meets the cited USCG gasoline fuel-system requirements, but this legacy fill does not meet 40 CFR 1060 evaporative-emissions requirements.

What’s in the Box

• Vented deck-fill assembly.
• Deck-plate key.
• Mounting ring.

Specifications

• PERKO Manufacturer Part Number: 0542DPGWHT
• Product Type: Vented gasoline deck fill
• Neck Configuration: Angled
• Material: Polymer body, cap and retainer
• Cap Colour: White
• Body Colour: Black
• Fill-Hose Size: 38.1 mm (1-1/2 in.)
• Vent-Hose Size: 15.9 mm (5/8 in.)
• Flange Outside Diameter: 85.7 mm (3-3/8 in.)
• Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
• Neck Length: 61.9 mm (2-7/16 in.)
• Mounting Fasteners: #8 screws
• Replacement Gas Cap: 0542DPG99W
• Replacement O-Ring: 054000099B
• Deck-Plate Key: 1247DP0BLK
