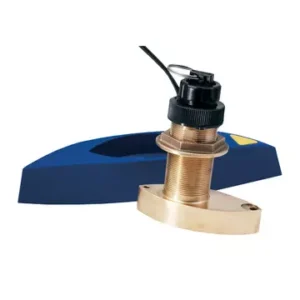

RAYMARINE B744V 600 W Bronze Through-Hull Depth/Speed/Temperature Transducer – A26043

Description

RAYMARINE B744V 600 W Bronze Through-Hull Depth/Speed/Temperature Transducer – A26043 is a proven 600 W bronze through-hull transducer for compatible conventional fishfinder/sonar systems. It combines depth, speed and temperature sensing in one housing and uses 50 kHz for wider/deeper searching plus 200 kHz for narrower, higher-detail sounding.

Features

• 600 W dual-frequency sonar operating at 50 kHz and 200 kHz.
• Depth, speed and water-temperature sensing from one through-hull installation.
• Bronze housing suited to fiberglass and wood hull installations.
• 45° beam at 50 kHz and 12° beam at 200 kHz for broad search coverage and tighter detail.
• Retractable insert with valve-equipped housing supports service with reduced water ingress when the insert is removed.

Raymarine lists a nominal maximum depth capability of approximately 1,200 ft at 50 kHz and 700 ft at 200 kHz under suitable conditions. The B744V is intended for hull deadrise from 0° to 24° and includes a 10 m transducer cable. For installations requiring a fairing block, compare A66091.

What’s in the Box

• B744V bronze through-hull transducer with depth/speed/temperature sensors
• 10 m transducer cable
• Installation hardware as supplied by manufacturer

Specifications

• Raymarine Part Number: A26043
• Transducer Type: Bronze through-hull
• Power: 600 W
• Frequencies: 50 / 200 kHz
• Functions: Depth / speed / temperature
• Beamwidth: 45° @ 50 kHz; 12° @ 200 kHz
• Maximum Depth: Approx. 1,200 ft @ 50 kHz; 700 ft @ 200 kHz
• Hull Material: Fiberglass / wood
• Deadrise Range: 0°–24°
• Cable Length: 10 m
