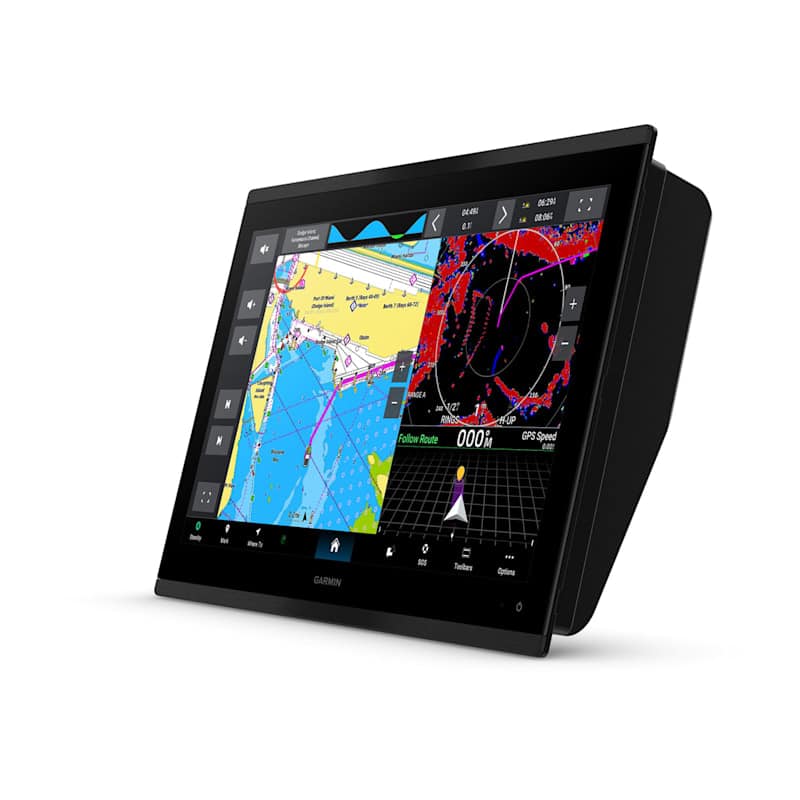

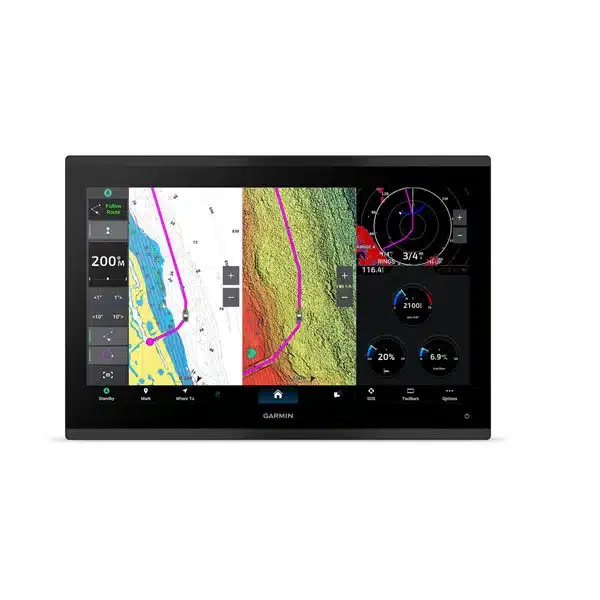

GARMIN GPSMAP 9217 17-inch Premium Chartplotter with Garmin Navionics+ – 010-03177-01

Description

The GARMIN GPSMAP 9217 is a 17-inch premium network chartplotter built for integrated multi-station helms. It combines a 4K touchscreen, Garmin Navionics+ chart coverage, fast multi-band GNSS positioning and Garmin BlueNet gigabit networking; this non-xsv version omits an internal sounder and uses network sonar support through compatible Garmin sounder modules and networked xsv displays.

Main Features

• 17-inch 4K touchscreen designed for bright marine helms
• Garmin Navionics+ charts for coastal and inland navigation
• Garmin BlueNet gigabit networking for high-bandwidth system integration
• Multi-band, multi-constellation GNSS with fast 10 Hz position updates
• Full network sonar compatibility without an internal sounder

Navigation and charting

The GPSMAP 9200 series is intended for serious cruising and sportfishing installations where chart detail, processing speed and system expansion matter. Garmin Navionics+ provides integrated coastal and inland mapping, while supported premium chart features can be expanded through compatible Garmin chart subscriptions and software.

Helm integration

BlueNet networking allows compatible chartplotters, radars, sonar modules, cameras and other high-bandwidth Garmin equipment to share data across the vessel. NMEA 2000 integration brings engine, autopilot, heading, AIS, sensor and instrument data onto the same helm display.

Sonar capability

For sonar, pair the display with a compatible network sounder, another xsv GPSMAP unit or a LiveScope system. This is useful on larger helms where sonar processing is centralized elsewhere.

Built for system growth

This generation is a strong choice when the display is expected to become part of a larger Garmin marine system rather than operate as a stand-alone plotter. Radar, autopilot, cameras, VHF/AIS and sensor data can be brought together in a coordinated helm.

Charts, route planning and updates

A chartplotter should be evaluated as much for its cartography as for its screen. Garmin Navionics+ packages combine coastal and inland coverage with Garmin navigation features, and supported chart subscriptions can provide updated chart content and premium mapping tools. Mariners should still compare electronic chart information with official notices, local knowledge and current conditions; route suggestions are planning aids, not a substitute for safe navigation.

Radar, AIS and collision-awareness integration

A networked GPSMAP can become the central display for compatible Garmin radar and AIS information. With suitable heading data, radar can be overlaid on the chart to help the operator compare charted features with live radar returns. AIS targets can add vessel identity, course and speed information. Radar and AIS are complementary aids: neither replaces visual watchkeeping, appropriate radar interpretation or compliance with collision regulations.

Autopilot and vessel data

Through NMEA 2000 and supported Garmin interfaces, GPSMAP can display information from compatible engines, tank sensors, wind/depth instruments, heading sensors and Reactor autopilots. A properly commissioned autopilot can receive navigation guidance from the chartplotter, while the operator retains responsibility for steering supervision and route safety. This integrated approach is one of the main reasons to choose GPSMAP over a basic stand-alone fishfinder.

Expansion and software ecosystem

Garmin marine systems can be expanded over time with compatible sonar modules, LiveScope systems, radar, cameras, VHF/AIS equipment, Fusion audio and other supported devices. ActiveCaptain and Garmin software tools provide selected update, planning and mobile-integration functions. Exact capabilities depend on the display generation and connected equipment, so system compatibility should be checked by part number before a refit.

Installation planning

Before purchase, measure the helm cutout and available rear clearance, confirm 12/24 V power capacity, network architecture and cable routing, and decide whether the display will be bail-mounted or flush-mounted. High-bandwidth network devices should be wired according to Garmin’s BlueNet or legacy Marine Network topology for the specific generation. Sonar installations also require the correct transducer connector, power rating, frequency range and mounting style.

Why the GPSMAP 9200 generation matters

The GPSMAP 9200 family is Garmin’s premium current-generation helm platform in these sizes. The 13- and 17-inch models use 4K displays, while the 10-inch model uses a high-definition panel. BlueNet provides gigabit-class Garmin marine networking for modern radar, sonar and multi-display systems. The xsv variants add an internal 1 kW sounder with xCHIRP, RapidReturn and UHD scanning-sonar capability; non-xsv models are intended for systems where sonar processing is provided elsewhere.

What’s in the Box

GPSMAP chartplotter, power cable, mounting/installation hardware, protective cover where supplied, chart/media card as applicable, and documentation. Verify carton contents for regional package variations.

Specifications

• Display: 17-inch 4K touchscreen
• Charts: Garmin Navionics+
• Sonar: No built-in sounder; network sonar compatible
• Networking: Garmin BlueNet, NMEA 2000 and compatible Garmin system interfaces
• GNSS: Multi-band, multi-constellation, 10 Hz
• Power: 10–32 VDC marine system
• Water rating: IPX7
