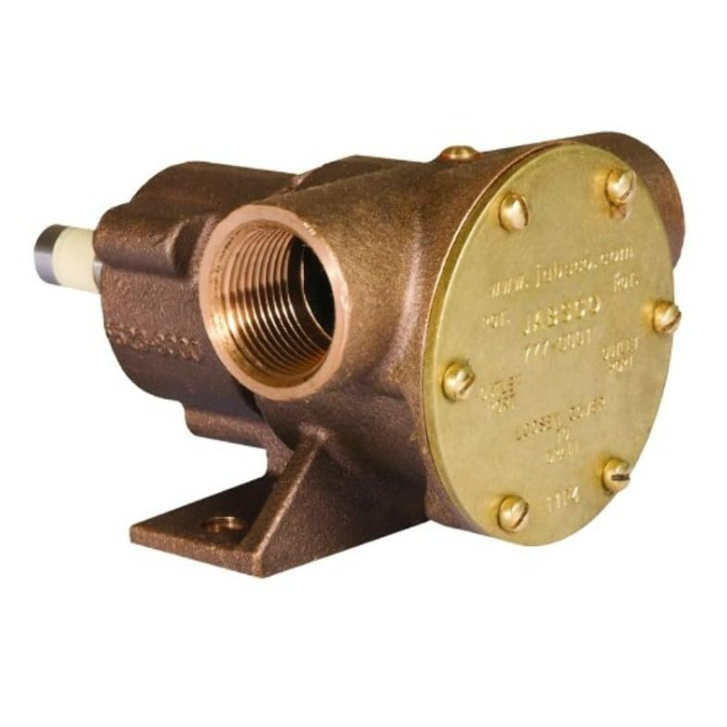

JABSCO 777 Bronze Flexible-Impeller Pedestal Pump, 1-Inch NPT – 777-9001
The JABSCO 777-9001 is a rugged bronze pedestal pump for engine cooling, water transfer and general marine pumping. Its neoprene flexible impeller provides strong self-priming performance, and the bidirectional design permits flow reversal by changing shaft rotation.
- Bronze pump body for corrosion resistance in marine water service
- Flexible neoprene impeller provides positive displacement and strong self-priming
- Pedestal and shaft arrangement allows belt, pulley or coupling drive
- Bidirectional pumping permits either port to serve as inlet based on shaft rotation
- Replaceable cam, wear plate, seals and impeller support long service life
Warning: Do not run a flexible-impeller pump dry. Do not use for gasoline or other flammable liquids unless the complete installation is specifically approved. Guard all exposed shafts, belts and couplings.
What’s in the Box
- 1 x JABSCO 777-9001 pedestal pump
- 1 x installed flexible impeller
- Pump documentation
Specifications
- Pump type: Bronze flexible-impeller pedestal pump
- Port size: 1-inch female NPT
- Nominal capacity: Approximately 23–26 GPM, depending on speed and head
- Impeller material: Neoprene
- Flow direction: Reversible with shaft rotation
- Self-priming lift: Up to approximately 3 m under suitable conditions
- Drive: External belt, pulley or coupling
- Manufacturer part number: 777-9001
