JABSCO PAR-Max 1 Automatic Freshwater Pump, 12V, 3.8 L/min, 35 PSI – 42630-3512-3C

Description

JABSCO PAR-Max 1 Automatic Freshwater Pump, 12V, 3.8 L/min, 35 PSI – 42630-3512-3C

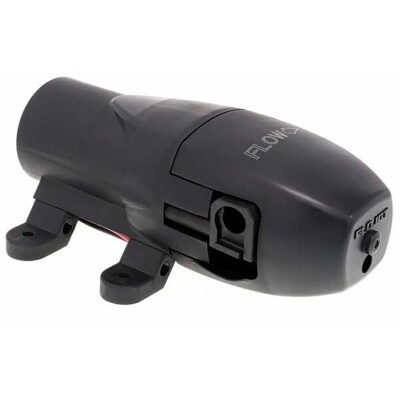

The JABSCO 42630-3512-3C PAR-Max 1 is a compact automatic water-pressure pump for a single fixture or other low-demand application. Its integral pressure switch starts and stops the pump as the outlet is opened and closed.

• Open-flow capacity approximately 3.8 L/min
• 35 PSI pressure-switch setting
• Compact multi-chamber diaphragm design
• Self-priming and capable of limited dry running
• Suited to a single faucet, sprayer or similar low-flow outlet

Warning: Confirm voltage, port size, rotation and application before installation. Disconnect electrical power and close associated valves before service. Do not use for petrol, solvents or liquids with a flash point below 37°C unless the pump is specifically approved for that service.

What’s in the Box

• 1 x JABSCO 42630-3512-3C pump
• Connection fittings as supplied

Specifications

• Part Number: 42630-3512-3C
• Voltage: 12V DC
• Open Flow: Approximately 3.8 L/min / 1.0 GPM
• Pressure Setting: 35 PSI / 2.4 bar
• Pump Type: Automatic diaphragm pump
