JABSCO 12V Electromagnetic Clutch Pump with Double-A Pulley – 18330-0000

Description

JABSCO 12V Electromagnetic Clutch Pump with Double-A Pulley – 18330-0000

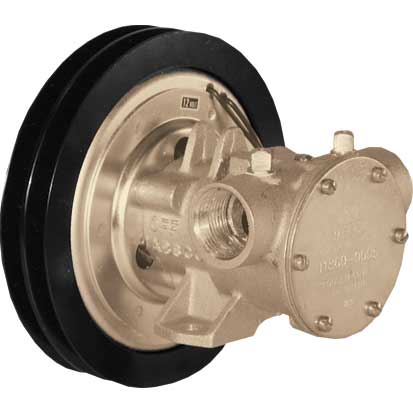

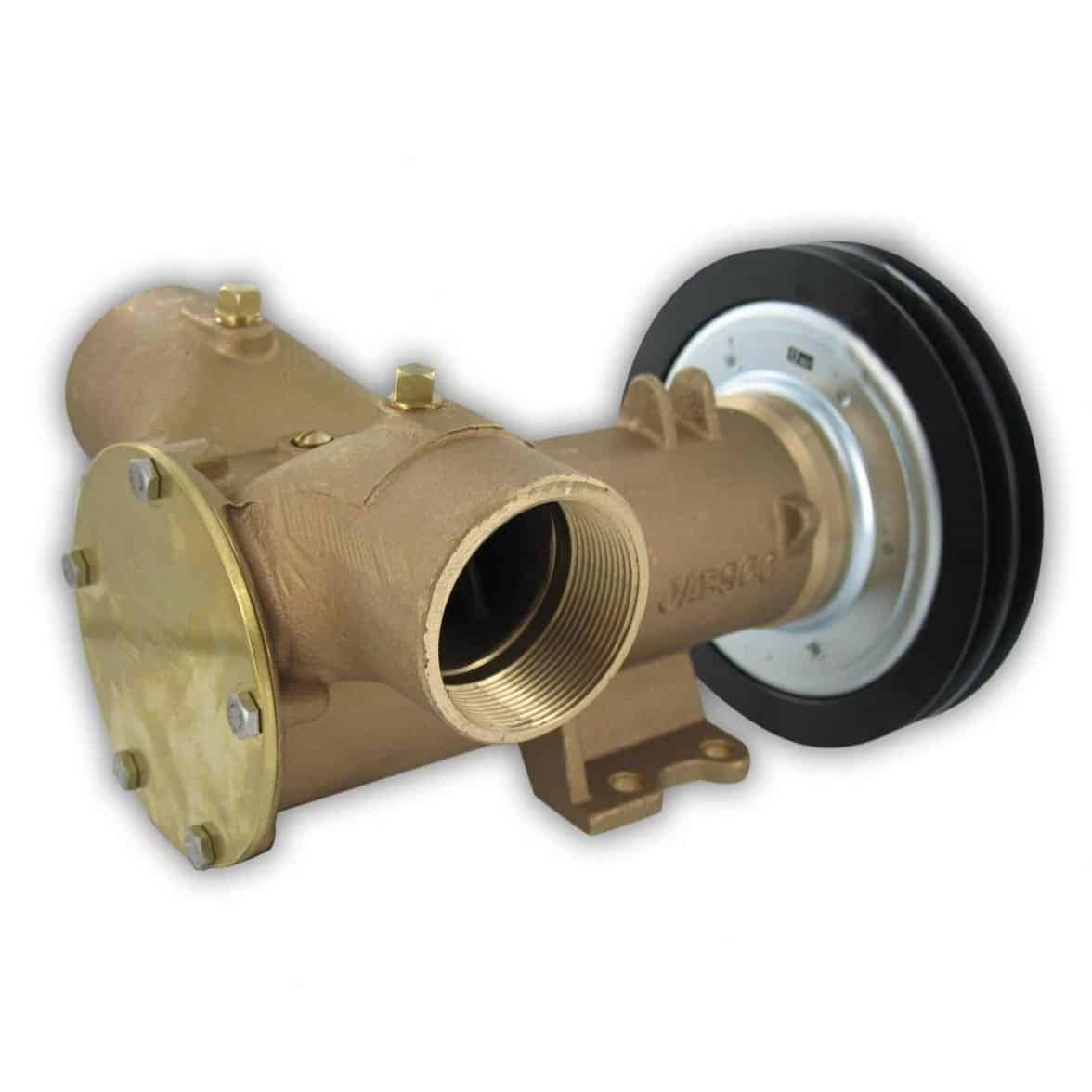

The JABSCO 18330-0000 combines a bronze flexible-impeller pump with a 12V electromagnetic clutch and double-A-groove pulley. It is designed for belt-driven installations where pump operation must be engaged or disengaged electrically.

• Nominal flow up to 314 L/min at 1,750 rpm
• 12V electromagnetic clutch for remote pump engagement
• Double-A-groove belt pulley
• 51 mm (2 in.) female NPT inlet and outlet ports
• Bronze pump body with nitrile flexible impeller
• Carbon/ceramic mechanical seal and sealed ball bearings

Warning: Never operate the pump dry. Belt alignment, guarding, wiring and overcurrent protection must meet the requirements of the complete installation.

What’s in the Box

• 1 x JABSCO 12V electromagnetic clutch pump assembly – 18330-0000
