JABSCO Bronze Clutch Pump, 12V, 1-Inch NPT, Up to 34.8 GPM – 11860-0005

Description

JABSCO Bronze Clutch Pump, 12V, 1-Inch NPT, Up to 34.8 GPM – 11860-0005

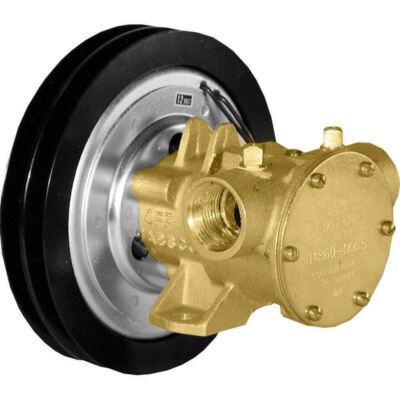

The JABSCO 11860-0005 is a belt-driven bronze flexible-impeller pump with a remotely controlled 12V electromagnetic clutch. It is suited to high-capacity washdown, circulation and transfer duties where the pump must be engaged only when needed.

• Electromagnetic 12V clutch enables remote pump engagement
• Nominal output is approximately 23 GPM at 1750 RPM and up to about 34.8 GPM at 3000 RPM
• Bronze body and nitrile impeller support demanding water and compatible liquid-transfer service
• 1-inch female NPT inlet and outlet ports simplify threaded plumbing
• Carbon/ceramic mechanical seal and double-A-groove pulley support heavy-duty operation

Warning: Guard all belts and rotating components. Confirm pulley alignment, drive speed, rotation, fuse and clutch wiring before operation. Do not pump flammable liquids and never run the impeller dry.

What’s in the Box

• 1 x JABSCO 11860-0005 clutch pump

Specifications

• Clutch Voltage: 12V DC
• Ports: 1-inch female NPT
• Nominal Flow: Approximately 23 GPM at 1750 RPM
• Maximum Listed Flow: Approximately 34.8 GPM at 3000 RPM
• Pump Body: Bronze
• Impeller: Nitrile
• Seal: Carbon/ceramic mechanical
• Pulley: Double A-groove
