GARMIN Reactor 40 Autopilot Core Package for Mechanical, Retrofit or Solenoid Steering with GHC 50 – 010-02794-02

Description

The Garmin Reactor 40 Mechanical/Retrofit/Solenoid Autopilot Corepack with GHC 50 is intended for boats that do not use Garmin’s standard hydraulic-pump packages. It can form the control system for compatible mechanical or cable-actuated steering, third-party hydraulic drive units, and constant-running hydraulic systems controlled by solenoids. The correct steering actuator, drive unit and rudder-feedback components are selected separately for the vessel.

Main Features

• Reactor 40 autopilot core system for mechanical, retrofit and solenoid steering applications
• Includes GHC 50 touchscreen autopilot instrument
• Solid-state 9-axis attitude and heading reference system
• NMEA 2000 integration with compatible Garmin chartplotters and instruments
• Supports separately selected Garmin or compatible third-party steering actuators

Drive-Unit Planning

This is a control corepack rather than a one-size-fits-all steering package. Mechanical installations may require a compatible linear actuator; retrofit hydraulic systems may use an existing or third-party hydraulic drive; solenoid systems require the appropriate control cable and steering hardware. Rudder feedback may also be required depending on the drive configuration.

What’s in the Box

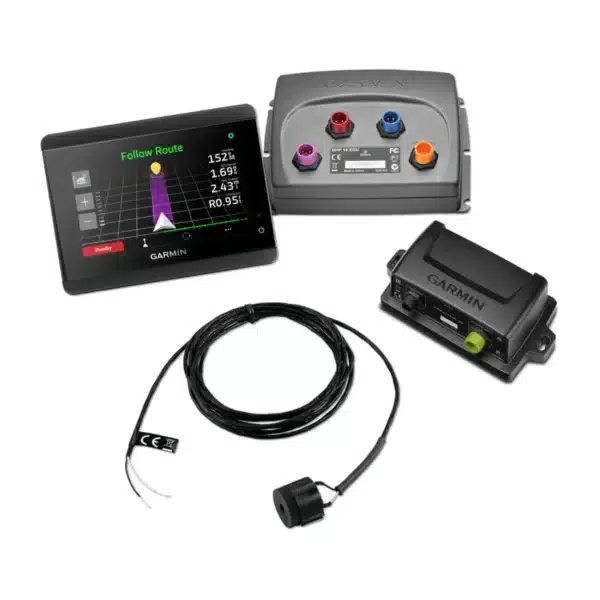

The corepack includes the Reactor 40 autopilot control components, electronic control unit, GHC 50 autopilot instrument, system cabling/network components and documentation. The steering drive or actuator is selected separately.

Specifications

• System: Reactor 40 Mechanical/Retrofit/Solenoid
• Applications: Compatible mechanical, cable-actuated, retrofit hydraulic and solenoid-controlled steering systems
• Autopilot instrument: GHC 50 included
• Drive unit: Selected separately for the vessel
• Network: NMEA 2000
• Part number: 010-02794-02
