Description

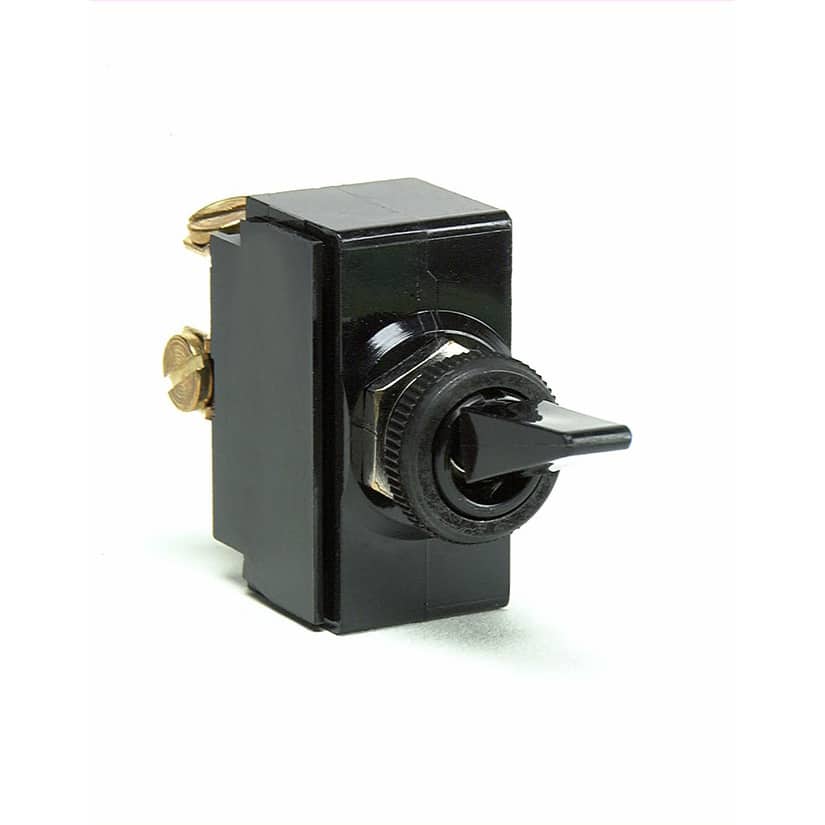

COLE HERSEE 54100-Series On-None-Off Toggle Switch 3-Pos – 54100-BP. Cole Hersee/Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 54100 series includes part 54109 which features an illuminated toggle indicating position.
Features and Benefits
- Silver contacts for corrosion resistance
- O-Ring Sealed Bushing
| Property | Value |
|---|---|
| Current Rating (Continuous) in Amps | 25 |
| Voltage Rating (Max) | 12 |
| Circuitry | SPST |
| Positions | On – None – Off |
| Input Terminals | 2 Screw |
| Housing | Black Plastic |
| Actuator | Wedge Toggle |
| Actuator Details | Black Plastic – 17.4625 |
| Mounting Method | Nickel Plated Brass Face Nut |
| Panel Thickness | Up to 1/8 (3.17mm) thick |
| Contact Material | Silver |
