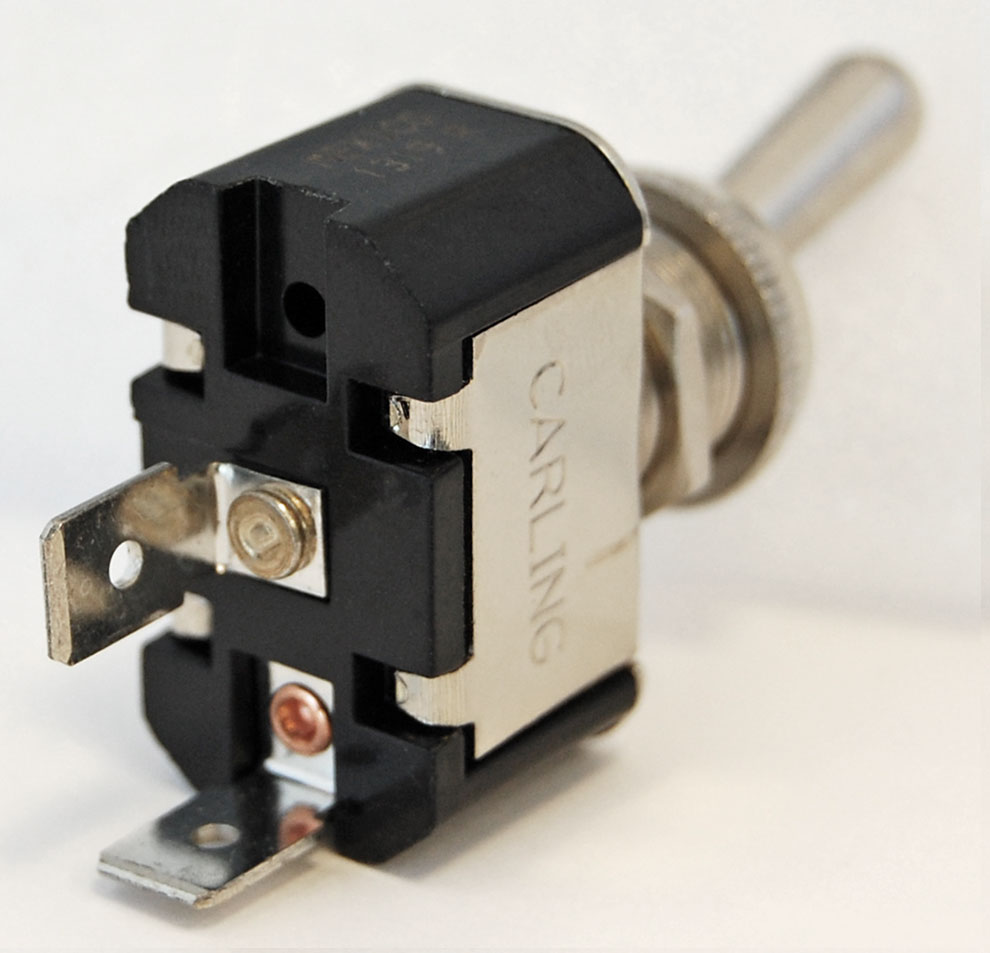

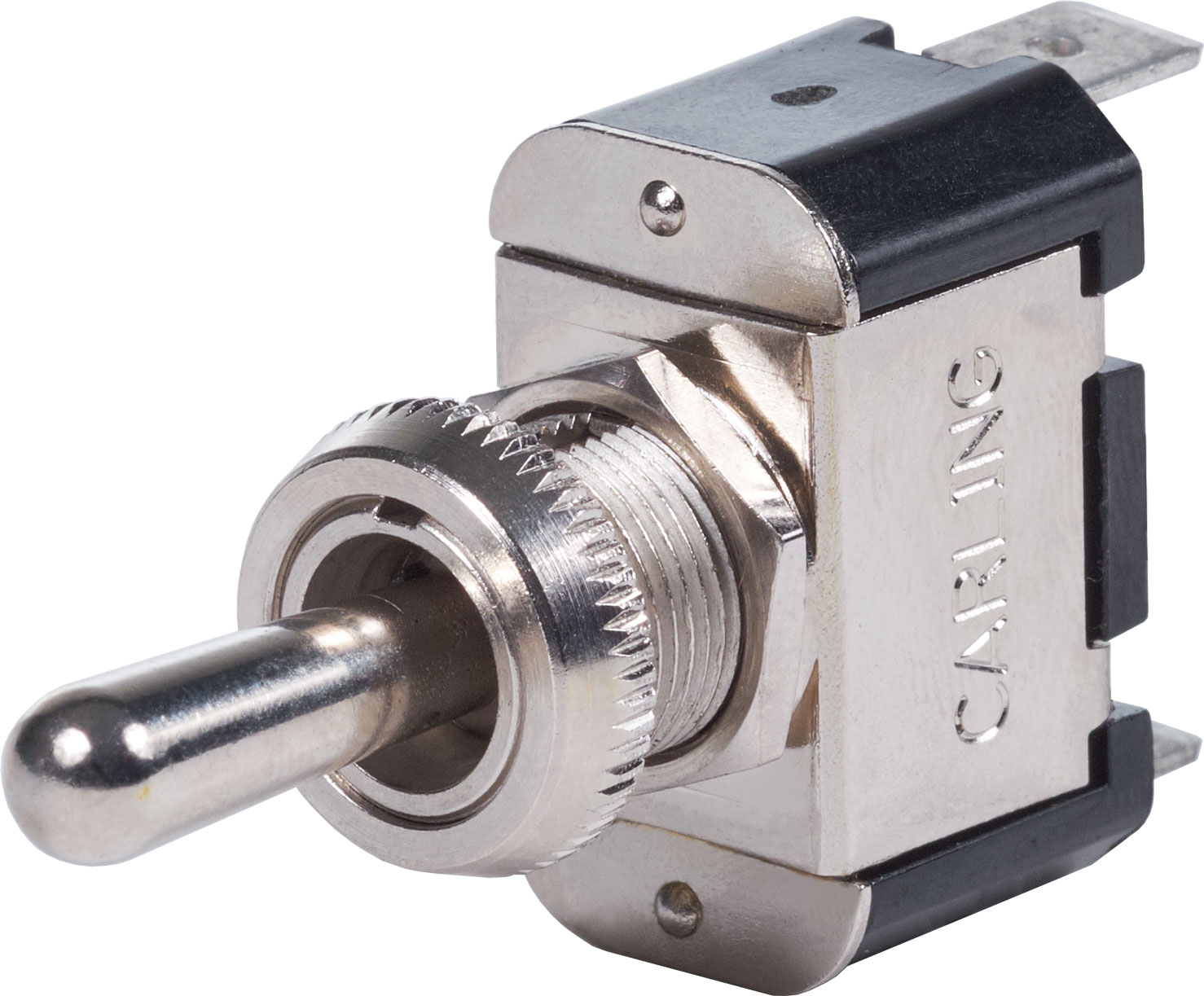

BLUE SEA SYSTEMS WeatherDeckÃ’šÃ‚® Toggle Switch SPST – (ON)-OFF – 4151

Description

BLUE SEA SYSTEMS WeatherDeckÃ’šÃ‚® Toggle Switch SPST – (ON)-OFF – 4151.

• Specially manufactured by Carling Technologies for use in Blue Sea Systems’ WeatherDeckÃ’šÃ‚® Panels
• When mounted with a WeatherDeckÃ’šÃ‚® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
• Nickel-plated brass and phenolic non-corrosive construction

Specifications
ActionÃ’šÃ‚	OFF-(ON)
Pole / ThrowÃ’šÃ‚	SPST
Poles	1
Common Applications	horn or windshield wipers
Maximum AmperageÃ’šÃ‚	15A @ 125V AC 15A @ 12V DC 10A @ 250V AC
Terminal Type	Quick Connect Tab
Number of Terminals	2
Terminal Size	0.25in (6.35 mm)
Weight	0.10lb (0.05 kg)
