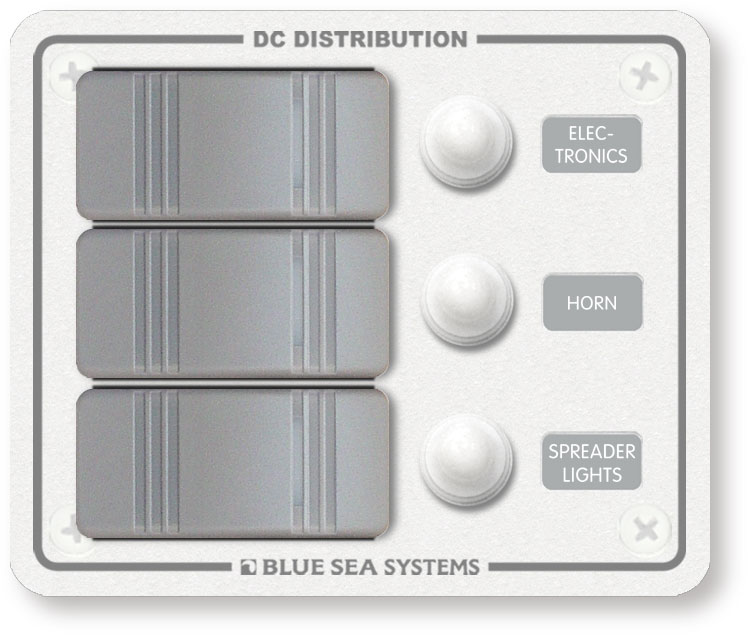

Blue Sea Systems Contura Water Resistant 12V DC Circuit Breaker Panel – White 3-Position – 8274
The Blue Sea Systems Contura Water Resistant 12V DC Circuit Breaker Panel – White 3-Position is designed for marine and mobile electrical circuit protection.
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66 — Protected against powerful water jets
- Ignition protected — safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Weatherproof: Water Resistant
- Positions: 3
- Nominal Voltage: 12V DC / 24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A @ 12V DC / 15A @ 24V DC
- Height: 3.75 in (95.25 mm)
- Width: 4.50 in (114.3 mm)
- Depth: 3.25 in (82.55 mm)
- Weight: 0.75 lb (0.34 kg)
- Component Envelope: Contura mounting component; use product page/drawing for exact panel layout
- Product Dimensions: 8.6 cm L × 5.1 cm W × 3.2 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 8274
