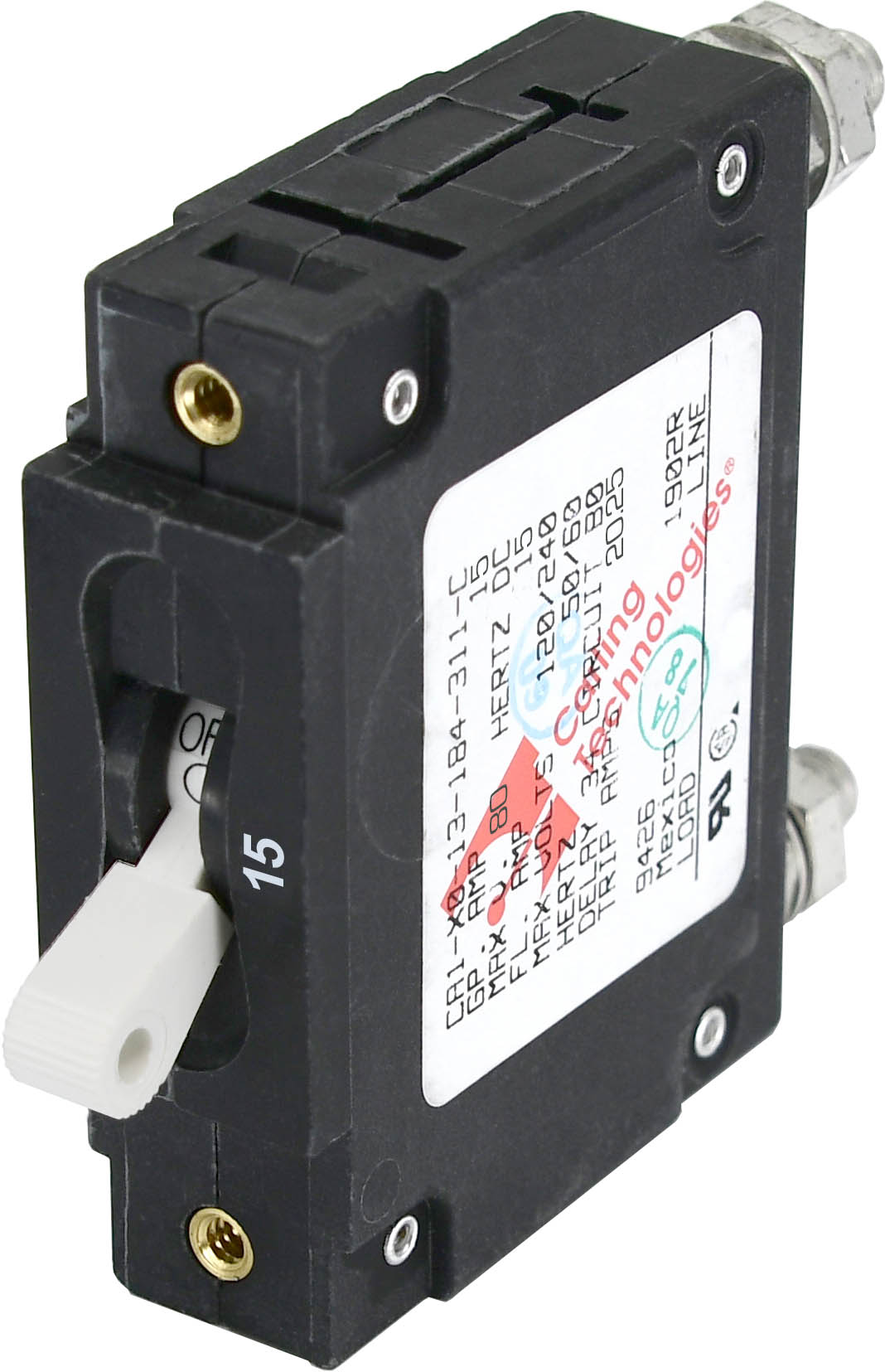

Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 15A – 7352

Description

Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 15A – 7352

The Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 15A is designed for marine and mobile electrical circuit protection.

• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• “Trip Free” — cannot be held closed after trip
• Provides resettable circuit protection for properly engineered marine electrical systems
• Helps protect branch circuits while allowing convenient service reset access

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 15A AC / 15A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC / 80V DC
• Circuit Breaker Type: Magnetic Hydraulic – trip-free
• Terminal Stud: 1/4-20 Tin-Plated Brass
• Terminal Stud Torque: 35 in-lb (3.95 N·m)
• Interrupt Capacity: 5,000A @ 125V AC / 5,000A @ 240V AC / 10,000A @ 80V DC
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 N·m)
• Switching Cycles: 10,000
• Weight: 0.25 lb (0.11 kg)
• Breaker Body Envelope: 2.50 in D × 0.75 in W × 2.50 in H (63.5 mm × 19.1 mm × 63.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 7352
