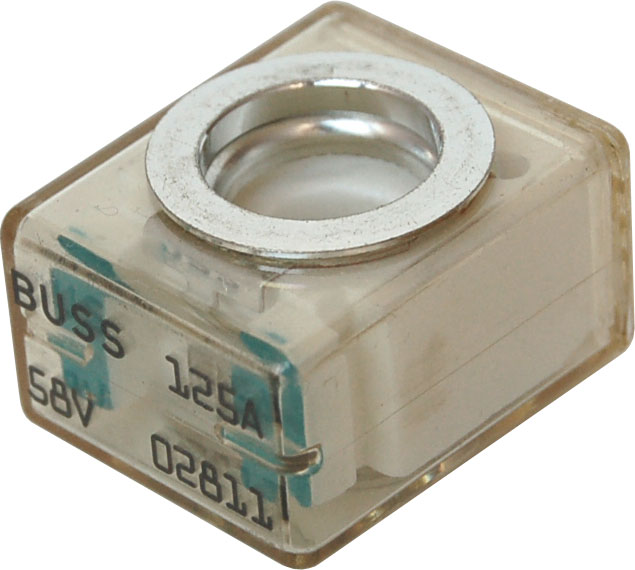

Blue Sea Systems Terminal Fuse 125A – 5184

Description

Blue Sea Systems Terminal Fuse 125A – 5184

The Blue Sea Systems Terminal Fuse 125A is designed for marine and mobile electrical circuit protection.

• Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151 — do not mount the fuse directly to the battery terminal
• Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
• Ignition protected — safe for installation aboard gasoline powered boats
• Clear window — visual indication of blown condition
• Color coded for each amperage

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 125A
• Ignition Protected: Yes
• Maximum Voltage: 58V DC
• Interrupt Capacity: 10,000A @ 14V DC / 5,000A @ 32V DC / 2,000A @ 58V DC
• Weight: 0.06 lb (0.03 kg)
• Fuse Body Size: MRBF terminal fuse format; approx. 1.48 in L × 0.75 in W × 0.38 in H (37.5 mm × 19.0 mm × 9.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5184
