Description

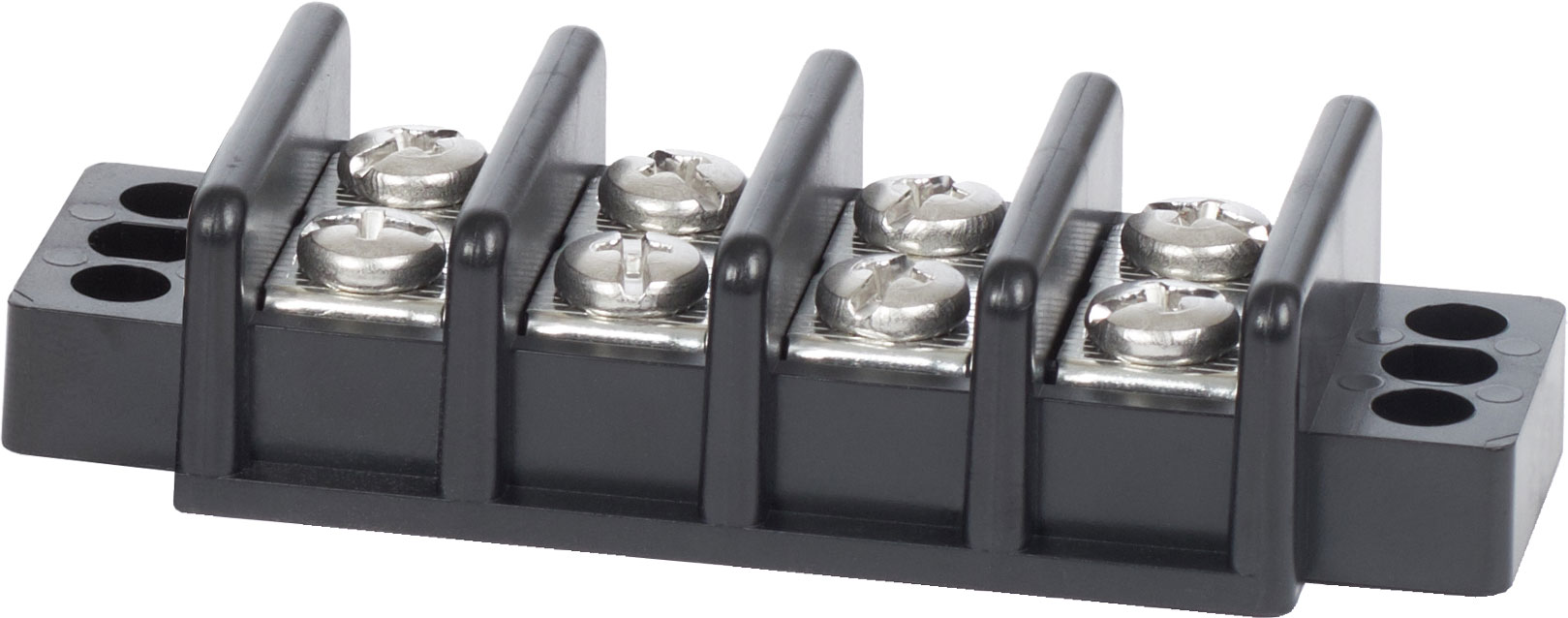

Blue Sea Systems Terminal Block 30A – 4 Circuit – 2504
The Blue Sea Systems Terminal Block 30A – 4 Circuit is designed for organized, secure marine power distribution and termination.
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
- Circuits: 4
- Organizes low-voltage wiring with secure screw-terminal connection points
For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.
Specifications
- Circuits: 4
- Length: 3.25 in (82.55 mm)
- Maximum Voltage: 600V AC/DC
- Continuous Rating: 30A
- Base Material: UL 94 V0, PC
- Bus Material: Nickel-Plated Brass
- Mounting Screw: #10 [M5]
- Screw Material: Stainless Steel
- Screw Terminal Torque: 10 in-lb (1.13 N·m)
- Terminal Screws: M4
- Wire Terminal Size: #8 [M4]
- Weight: 0.15 lb (0.07 kg)
- Terminal Block Width: Approx. 1.38 in (35 mm)
- Terminal Block Height: Approx. 0.98 in (25 mm)
- Product Dimensions: 8.25 cm L × 3.5 cm W × 2.5 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 2504
